SYS-4029GP-TRT | Supermicro Dual Xeon 4U GPU Server
long delivery time
Advantages:
- 3D Rendering
- Astrophysics Simulation
- Chemistry Simulation
- Virtualization
- Cloud Computing
- Research Laboratory/National Laboratory
Energy:
(TDP):
Thermal Dissipation:
(BTU):
- Manufacturer: Supermicro
-
Order number:
1216129
-
Manufacturer SKU:
SYS-4029GP-TRT
Configuration not found? Please use our server request form!
Supermicro SYS-4029GP-TRT: High flexibility and Dual Root GPU System for balanced... more
SYS-4029GP-TRT Product Information
Supermicro SYS-4029GP-TRT: High flexibility and Dual Root GPU System for balanced performance & fast CPU to GPU communication

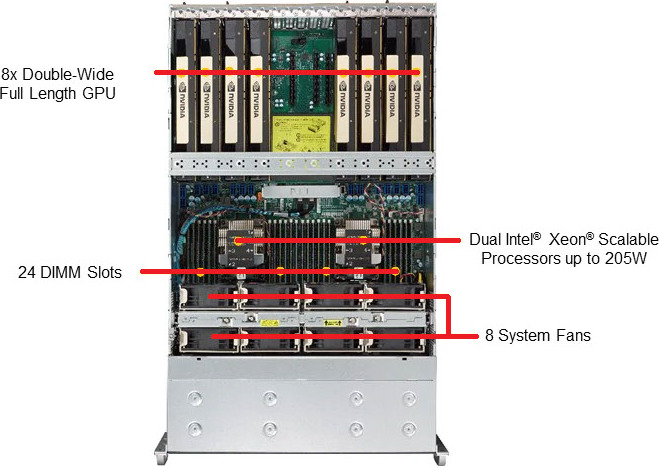

Mainboard:
Supermicro X11DPG-OT-CPU
CPU:
Dual Socket P (LGA 3647), 2nd Gen Intel® Xeon® Scalable Processors
Up to 28 Cores, support 205W TDP
RAM:
24x DIMM slots, up to 6TB RAM DDR4-2933MHz
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 dedicated IPMI LAN port
Expansion-Slots:
8x PCI-E 3.0 x16 (FHFL) slots - supported up to 8 GPUs
2x PCI-E 3.0 x8 slots
1x PCI-E 3.0 x4 slot
M.2:
1x NVMe based M.2 SSD, Form factors 2260/2280/22110
Storage:
24x 2.5" hot-swap SAS/SATA drive bays
8x 2.5" SATA supported natively
2x 2.5" NVMe supported natively
Datasheet for Supermicro SYS-4029GP-TRT
| Processor / Cache | |
|---|---|
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors und Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| GPU | |
|---|---|
| Supported GPUs | 8 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA V100, P40, T4, Quadro, RTX Supports both active and passive cooled GPUs |
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch Dual-Root PCI-E Root Architecture Chart |
| System Memory | |
|---|---|
| Memory Capacity | 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory †† Cascade Lake only |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C622 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Controllers | Dual Port 10GbE from C622 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output | |
|---|---|
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA connector |
| COM Port | 1 COM port (header) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
|---|---|
| Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) |
| Model | CSE-418GTS-R4000BP2 |
| Dimensions | |
|---|---|
| Height | 7.0" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
| Available Colors | Black |
| Drive Bays / Storage | |
|---|---|
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively |
| M.2 | 1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110 |
| Expansion Slots | |
|---|---|
| PCI-Express | 8 PCI-E 3.0 x16 (FHFL) slots - supporting up to 8 GPUs 2 PCI-E 3.0 x8 slots 1 PCI-E 3.0 x4 slot |
| System Cooling | |
|---|---|
| Fans | 8 Hot-swap 92mm cooling fans |
| Power Supply | |
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only) |
| Dimension(W x H x L) | 73.5 x 40 x 265 mm |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) |
| +12V | Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-4029GP-TRT | |
| System Building | SYS-4029GP-TRT can be configured individually | |
