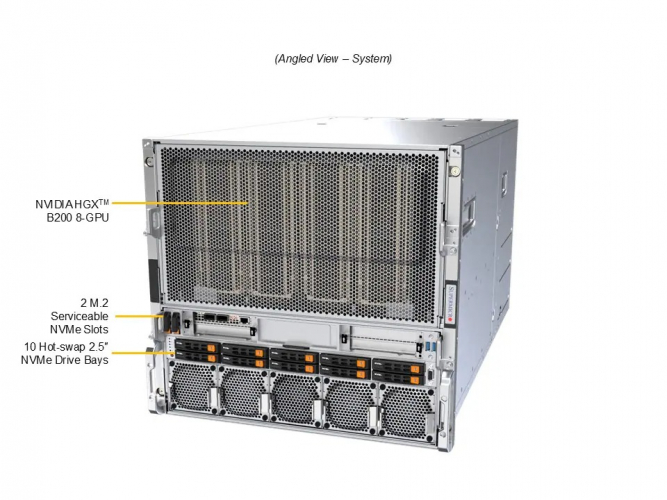

Supermicro SYS-A22GA-NBRT | Dual Xeon 10U NVIDIA GPU Server
long delivery time
Advantages:
- Scientific Research
- Business Intelligence & Analytics
- Finance Services and Fraud Detection
- Large Language Model (LLM) and Generative AI
- Autonomous Vehicle Technologies
- Conversational AI
- Drug Discovery
- AI/Deep Learning Training and Inference
- High Performance Computing (HPC)
Price on request
- Manufacturer: Supermicro
-
Order number:
1254784
-
Manufacturer SKU:
SYS-A22GA-NBRT
Configuration not found? Please use our server request form!
Supermicro SYS-A22GA-NBRT: Redefining Computational Excellence with Advanced NVIDIA HGX B200... more
SYS-A22GA-NBRT Product Information
Supermicro SYS-A22GA-NBRT: Redefining Computational Excellence with Advanced NVIDIA HGX B200 8-GPU Integration and Intel Xeon 6 CPU in 10U
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro X14DBG-DAP
CPU:
Dual Socket BR (LGA-7529), Intel® Xeon® 6900 series processors with P-cores
Supports up to 128C/256T; Up to 500W CPU TDP
RAM:
24x DIMM slots
Up to 6TB RAM DDR5-8800MTs/6400MTs ECC MRDIMM/RDIMM
LAN:
2x 10GbE RJ45 LAN ports
1x 1GbE RJ45 dedicated BMC LAN port
Expansion Slots:
10x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
M.2:
2x M.2 PCIe 4.0 x4 NVMe slots, Form Factor 2280/22110, M-Key
Storage:
10x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
| SKU Overview | ||
|---|---|---|
| SYS-A22GA-NBRT | Dual Intel Xeon 6900 Series CPU with P-Cores, 10x 2.5" hot-swap drive bays, 12x PCIe (10x LP, 2x FHHL), 6x 5250W redundant PSUs | |
Datasheet for Supermicro SYS-A22GA-NBRT
| Processor | |
|---|---|
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU | |
|---|---|
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
|---|---|
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB UEFI |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight | |
|---|---|
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| LEDs | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off button UID/ Reset button |
| Expansion Slots | |
|---|---|
| PCI-Express (PCIe) Configuration | Default 10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
|---|---|
| Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 15 counter-rotating 80x80x80mm Fans 4 counter-rotating 60x60x56mm Fans |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
|---|---|
| 6x 5250W Redundant (3 + 3) power supplies | |
| Dimension (W x H x L) |
106.5 x 82.1 x 245.3 mm |
| Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-A22GA-NBRT | |
| System Building | SYS-A22GA-NBRT configured by Supermicro as Complete System | |
