Huawei OceanStor Dorado 2100 | Entry-Level 2U All-Flash Storage
Advantages:
- Enterprise Storage
- All-Flash
- High Availability
- NAS & S3
- Data Protection
- Manufacturer: Huawei
-
Order number:
1256027
-
Manufacturer SKU:
OceanStor Dorado 2100 HCS
Configuration not found? Please use our server request form!
OceanStor Dorado 2100 HCS Product Information

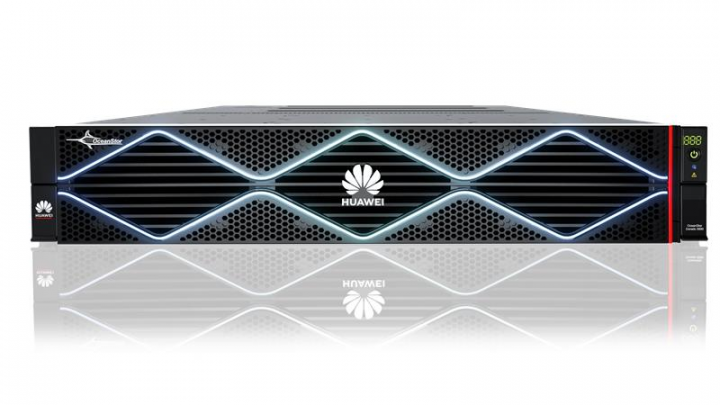

Huawei OceanStor Dorado 2100: 46TB Raw Capacity Entry-Level All-Flash NAS Storage for SME with S3-Support
Please note: This storage system is sold as a fully configured unit. The price shown refers to the example configuration described, including service and support. Do you require a customized configuration? Please contact us!
Form Factor:
2U rackmount enclosure
Controllers:
Dual hot-pluggable controllers
128GB cache
Port Types:
8x 1GbE, 4x 10GbE (including multi-mode SFP+)
4x SAS 3.0 ports
Up to 28 front-end ports per controller enclosure
4x hot-swappable I/O modules per controller enclosure
Storage:
12x 3.84TB SAS SSD Disk Units (2.5")
RAID 5, RAID 6, and RAID-TP (triple-parity for maximum data protection)
NAS Advanced License / Software Features:
CIFS, NFS, NDMP, Snap, Replication, Clone, QoS, Metro, CDP, DME IQ, DNS, Quota, WORM, Multi-Tenant, Audit, Vault, NFS+Client
Value-Added Features:
HyperSnap, HyperReplication, HyperClone, HyperEncryption, HyperMetro, HyperCDP, SmartCompression, SmartQoS, SmartErase, SmartMigration
Management:
DeviceManager, UltraPath, DME IQ
Support:
36 months Hi-Care Onsite Standard
36 months Hi-Care Application Software Upgrade Support
| SKU Overview | ||
|---|---|---|
| OceanStor Dorado 2100 | 2U Entry-Level All-Flash Storage-System, Dual Controller, 12x 3.84TB SSD SAS Disk (2.5), 8x 1GbE, 4x10GbE(incl.multi-mode SFP+) Ports | |
Datasheet for Huawei OceanStor Dorado 2100
| Dimensions (HxWxD, mm) | 2U Rackmount | |
| System Cache | 128 GB | |
| Controller | Dual controller per system (scalable up to 8 hot-swap controllers) | |
| Front-End Ports | 8x 1GbE, 4x10GbE (including Multi-Mode SFP+), max 28 ports per controller | |
| Back-End Ports | 4x SAS 3.0 per controller enclosure | |
| SSDs | 12x 3.84 TB SAS SSD 2.5" | |
| RAID Levels | RAID 5, RAID 6, RAID-TP (tolerates simultaneous failure of 3 SSDs) | |
| File Systems | Supports up to 1024 file systems | |
| Value-Added Features | NAS Advanced License (including DeviceManager, CIFS, NFS, NDMP, S3, Snap, Replication, Clone, QoS, Metro, CDP, DME IQ, DNS, Quota, WORM, Multi-Tenant, Audit, Vault, NFS+Client) | |
| Storage Management Software | DeviceManager, UltraPath, DME IQ | |
| Power Supply | Controller Enclosure: 200–240V AC ±10%, 192–288V DC Disk Enclosure: 100–240V AC ±10%, 192–288V DC |
|
| Weight | Controller Enclosure: ≤30 kg Disk Enclosure: ≤20 kg |
|
| Operating Environment | Temperature: 10°C–35°C Humidity: 8–80% RH, non-condensing |
|
| Technical Hardware Support | 36 Months Hi-Care Onsite Standard | |
| Technical Software Support | 36 Months Hi-Care Application Software Upgrade Support | |
| Order Information | ||
| Manufacturer SKU | OceanStor Dorado 2100 | |
| System Configuration | OceanStor Dorado 2100 configured by Huawei as a complete storage system | |
