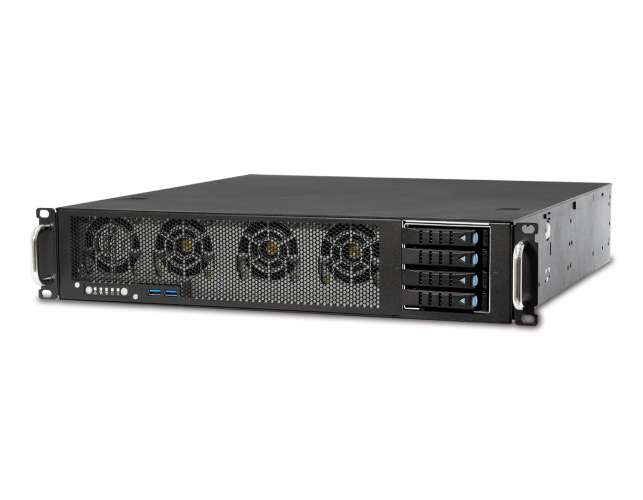

VivaRack HWS-SAE25M-2LU2V5-2L2T-R | Single EPYC 2U Rack Server
- Manufacturer: Happyware
-
Order number:
HWS-SAE25M-2LU2V5-2L2T-R
-
Manufacturer SKU:
HWS-SAE25M-2LU2V5-2L2T-R
Configuration not found? Please use our server request form!
HWS-SAE25M-2LU2V5-2L2T-R Product Information
Happyware VivaRack HWS-SAE25M-2LU2V5-2L2T-R: 2U enterprise-grade AMD EPYC rack server with short depth, rear IO/front IO convertible, with 16-core Turin CPU, 256GB DDR5 RAM, and 4× 3.84TB U.2 SSDs
CPU:
Single Socket SP5 (LGA 6096), AMD EPYC™ 9115,
16C/32T, 2.60-4.10GHz, 155W TDP
no integrated graphics
RAM:
8x 32GB DDR5-5600MHz ECC Registered (RDIMM), total 256GB
1DPC configuration
LAN:
2x 10GbE RJ45 via Intel X710-AT2
2x 1GbE RJ45 via Intel i210
1x RJ45 dedicated IPMI GLAN port
Expansion Slots:
7x PCIe 5.0 x16 low-profile slots
M.2:
1x M.2 PCIe 5.0 x4 / SATA, Form factor 2280, M-Key
1x M.2 PCIe 5.0 x4 / SATA, Form factor 22110/2280, M-Key
Storage:
4x 3.84TB 2.5" U.2 NVMe SSD, SED, TCG
| SKU Overview | ||
|---|---|---|
| HWS-SAE25M-2LU2V5-2L2T-R | Single AMD EPYC 9115 CPU, 8x 32GB DDR5-5600 ECC RDIMM, 4x 2.5" U.2 NVMe SSDs (3.84TB each), 7x PCIe 5.0 x16 low-profile slots, 2x 10G + 1G LAN, 2x 800W Titanium redundant PSUs | |
Datasheet for Happyware VivaRack HWS-SAE25M-2LU2V5-2L2T-R
| Dimensions (W x H x D, mm) | 2U 438 x 88 x 450 mm |
| CPU | Single Socket SP5 (LGA 6096) AMD EPYC™ 9115, 16C/32T, 2.60-4.10GHz, 155W TDP |
| Socket | 1 x SP5 (LGA 6096) |
| Chipset | System on Chip (SOC) |
| Memory | 8 x DIMM slots DDR5 RDIMM, 288-Pin, ECC Registered 1DPC configuration, total: 256GB Max per RDIMM: 32GB Memory speed: 5600 MHz |
| LAN | 2 × 10GbE RJ45 via Intel X710-AT2 2 × 1GbE RJ45 via Intel i210 1 x RJ45 dedicated IPMI GLAN port |
| Video | ASPEED AST2600 1 x DB15 VGA, VRAM: DDR4 512MB |
| Storage | 4 x 2.5" U.2 NVMe SSD, 3.84TB, SED, TCG, PCIe 5.0, 1DWPD/5Y 2 x M.2 PCIe 5.0 x4 / SATA (2280) 1 x M.2 PCIe 5.0 x4 / SATA (22110/2280) |
| Expansion Slots | 7 x PCIe 5.0 x16 low-profile slots |
| Internal I/O | 24-pin ATX Main Power, 8-pin ATX 12V, 4-pin ATX 12V 7 x Fan Header, 2 x TPM Header (17-pin LPC + 13-pin SPI) SMBus, PMBus, IPMB, Auxiliary Panel Header, System Panel Header, Speaker Header |
| Front I/O | 2 x USB 3.0, Power button, System Reset, NMI, Status LEDs |
| Rear I/O |
2 x USB 3.2 Gen1 Type-A |
| TPM | 1 x TPM Header |
| Power Supply | 2 x 800W 1+1 Titanium redundant PSUs |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 6.3, SMBIOS 3.3.0, ASRock Rack Instant Flash |
| System Management | ASPEED AST2600 IPMI, Dedicated BMC GLAN, Remote BIOS/BMC update, Sensor Protocol, Event Log Filter, User Management, LDAP/AD Support |
| OS Compatibility |
Microsoft® Windows: (für EPYC 9005) Linux: (für EPYC 9005) Hypervisor: (für EPYC 9005) |
| System Fans | 4 x 60 x 38 mm easy swap front fans, optional additional fans supported |
| Operating Environment | Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C ~ 70°C Operating humidity: 20%-80% Non-operating humidity: 20%-90% |
| Package Dimensions | 655 x 580 x 244 mm |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | HWS-SAE25M-2LU2V5-2L2T-R | |
| System Configuration | HWS-SAE25M-2LU2V5-2L2T-R configured by Happyware as a complete system | |
