Happyware HWS-SAE25M-2LU2V3-2T-R

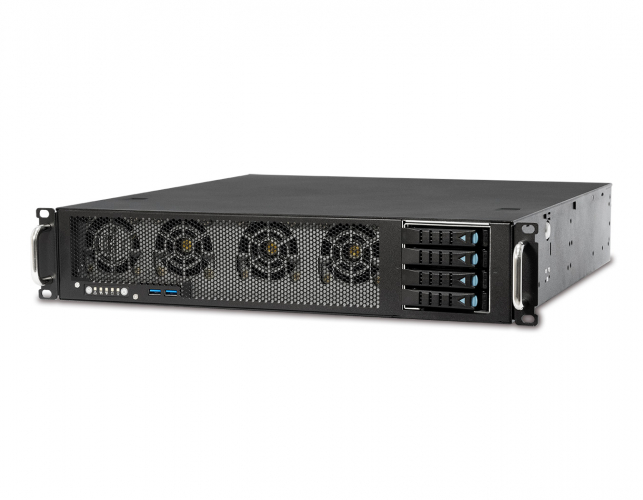

Happyware HWS-SAE25M-2LU2V5-2L2T-R 2U Rack Server

long delivery time

Advantages:

Enterprise Server
Webhosting
Database
Networking

Turin + DDR5 Version

special highlight

Attractive price thanks to DDR4 RAM

€9,610.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:

Christoph Handl

Sales

+49 (0)4181 235770

request quotation

Manufacturer: Happyware
Order number:
HWS-SAE25M-2LU2V3-2T-R
Manufacturer SKU:
HWS-SAE25M-2LU2V3-2T-R

Configuration not found? Please use our server request form!

Happyware VivaRack HWS-SAE25M-2LU2V3-2T-R: 2U enterprise-grade AMD EPYC rack server with short... more

Close menu

HWS-SAE25M-2LU2V3-2T-R Product Information

Happyware VivaRack HWS-SAE25M-2LU2V3-2T-R: 2U enterprise-grade AMD EPYC rack server with short depth, rear IO/front IO convertible, with 16-core Milan CPU, 256GB DDR4 RAM, and 4× 3.84TB U.2 SSDs

CPU:

Single Socket SP3, AMD EPYC™ 7313P,

16C/32T, 3GHz, 155W TDP

RAM:

8x 32GB DDR4-3200MHz ECC Registered (RDIMM), total 256GB

1DPC configuration

LAN:

2x 10GbE RJ45 via Broadcom BCM57416

1x RJ45 dedicated IPMI GLAN port

Expansion Slots:

6x PCIe 4.0 x16 low-profile slots

1x PCIe 4.0 x16 *occupied by ROME Board

M.2:

1x M.2 PCIe 4.0 x4 / SATA, Form factor 2280/2260/2242/2230, M-Key

1x M.2 PCIe 4.0 x4 / SATA, Form factor 22110/2280/2260/2242/2230, M-Key

Storage:

4x 3,84 TB 2.5" U.2 NVMe SSD, SED, TCG

Close menu

SKU Overview
HWS-SAE25M-2LU2V3-2T-R	Single AMD EPYC 7313P CPU, 8x 32GB DDR4-3200 ECC RDIMM, 4x 2.5" U.2 NVMe SSDs (3.84TB each), 6x PCIe 4.0 x16 low-profile slots, 2x 10GbE LAN, 2x 800W Titanium redundant PSUs

Datasheet for Happyware VivaRack HWS-SAE25M-2LU2V3-2T-R

Dimensions (W x H x D, mm)	2U 438 x 88 x 450 mm
CPU	Single Socket SP3 AMD EPYC™7313P, 16C/32T, 3GHz, 155W TDP
Socket	1 x SP3
Chipset	System on Chip (SOC)
Memory	8 x DIMM slots DDR4 RDIMM, 288-Pin, ECC Registered 1DPC configuration, total: 256GB Max per RDIMM: 32GB Memory speed: 3200 MHz
LAN	2 x 10GbE RJ45 via Broadcom BCM57416 1 x RJ45 dedicated IPMI GLAN port
Video	ASPEED AST2500 1 x DB15 VGA, VRAM: DDR4 512MB
Storage	4 x 3.84TB2.5" U.2 NVMe SSD, SED, TCG, PCIe 5.0, 1DWPD/5Y 2 x M.2 PCIe 4.0 x4 / SATA (2280/2260/2242/2230) 1 x M.2 PCIe 4.0 x4 / SATA (22110/2280/2260/2242/2230)
Expansion Slots	6 x PCIe 4.0 x16 low-profile slots (*1 PCIe x16 occupied by ROME Board)
Internal I/O	24-pin ATX Main Power, 8-pin ATX 12V, 4-pin ATX 12V 7 x Fan Header, 2 x TPM Header (17-pin LPC + 13-pin SPI) SMBus, PMBus, IPMB, Auxiliary Panel Header, System Panel Header, Speaker Header
Front I/O	2 x USB 3.0, Power button, System Reset, NMI, Status LEDs
Rear I/O	2 x USB 3.2 Gen1 Type-A 1 x DB15 VGA 1 x DB9 Serial 2 x 10GbE RJ45 1 x dedicated IPMI LAN UID Button/LED
TPM	1 x TPM Header
Power Supply	2 x 800W 1+1 Titanium redundant PSUs
BIOS Type	32MB AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP), ACPI 6.3, SMBIOS 3.3.0, ASRock Rack Instant Flash
System Management	ASPEED AST2500 IPMI, Dedicated BMC GLAN, Remote BIOS/BMC update, Sensor Protocol, Event Log Filter, User Management, LDAP/AD Support
OS Compatibility	Microsoft® Windows: - Server 2019 (64bit) - Server 2022 (64 bit) Linux: - RedHat Enterprise Linux Server Server 8.2 (64bit) / 7.9 (64bit) - CentOs 8.5 ( 64 bit) / 8.2 ( 64 bit) / 7.9 ( 64 bit) - SUSE SLES 15.4(64 bit) / 15.2(64 bit) / 12.5(64bit) - UBuntu 22.04 (64 bit) / 20.04.4 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit) Hypervisor:: - VMWare® ESXi/ 7.0 U3d / 7.0 U1 / 6.7 U3
System Fans	4 x 60 x 38 mm easy swap front fans, optional additional fans supported
Operating Environment	Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C ~ 70°C Operating humidity: 20%-80% Non-operating humidity: 20%-90%
Package Dimensions	655 x 580 x 244 mm

Order Information
Manufacturer SKU	HWS-SAE25M-2LU2V3-2T-R
System Configuration	HWS-SAE25M-2LU2V3-2T-R configured by Happyware as a complete system
