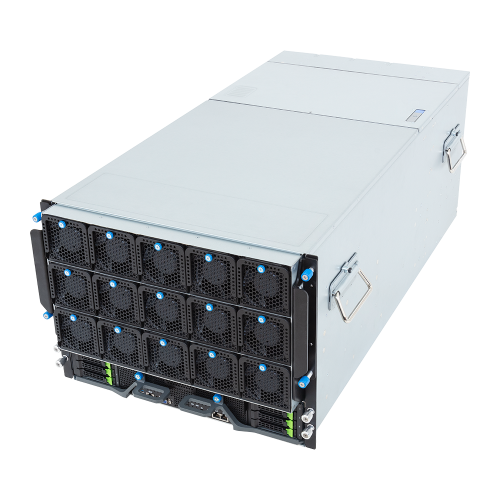

Gigabyte G894-SD1-AAX5 | Dual Intel Xeon 8U AI/HPC GPU Server
long delivery time
Advantages:
- AI / AI Training / AI Inference
- GPGPU
- HPC
special highlight
NVIDIA HGX™ B200 with 8x SXM GPUs
Price on request
- Manufacturer: Gigabyte
-
Order number:
1255521
-
Manufacturer SKU:
6NG894SD1DR000AAX5
Configuration not found? Please use our server request form!
Gigabyte G894-SD1-AAX5 (6NG894SD1DR000AAX5): HPC/AI Server with Dual Xeon ®... more
6NG894SD1DR000AAX5 Product Information
Gigabyte G894-SD1-AAX5 (6NG894SD1DR000AAX5): HPC/AI Server with Dual Xeon® 6 CPU, 8-GPU NVIDIA HGX™ B200 Acceleration with Optimised Air Cooling in 8U
Mainboard:
Gigabyte MSB4-PE0
CPU:
Dual Socket E2 (LGA-4710), Intel® Xeon® 6700-Series Processors
Intel® Xeon® 6500-Series Processors
Up to 288 E-cores per CPU / Up to 128 P-cores per CPU
up to 350W CPU TDP
GPU:
NVIDIA HGX™ B200 with 8x SXM GPUs
Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
RAM:
32x DIMM slots, up to 8TB RAM DDR5-8000MHz MRDIMM / DDR5-6400/5200MHz RDIMM
8-channel Memory Architecture
LAN:
Front
2x 10GbE LAN ports via Intel® X710-AT2
1x 10/100/1000 Mbps Management LAN
Rear
1x 10/100/1000 Mbps Management LAN
Expansion Slots:
8x PCIe 5.0 x16 FHHL slots
4x PCIe 5.0 x16 FHHL slots
Storage:
8x 2.5" Gen5 U.2 NVMe hot-swap drive bays
M.2:
2x M.2 slots, PCIe Gen 5 (x4 and x2), Form factor 2280/22110, M-Key
| SKU Overview |
|---|
| Dual Intel Xeon 6700/6500-Series CPU, 8x 2.5" hot-swap drive bays, 8x GPUs, 2x 10GbE LAN, 12x PCIe (FHHL), 12x 3000W redundant PSUs |
Datesheet for Gigabyte G894-SD1-AAX5 (6NG894SD1DR000AAX5)
| Dimensions (WxHxD, mm) | 8U 447 x 351 x 923 |
|
| Motherboard | MSB4-PE0 | |
| CPU | Intel® Xeon® 6 Processors - Intel® Xeon® 6700-Series Processors - Intel® Xeon® 6500-Series Processors Dual processor, TDP up to 350W Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
|
| Socket | 2 x LGA 4710 Socket E2 |
|
| Chipset | System on Chip | |
| Memory | 32 x DIMM slots Support DDR5 RDIMM/MRDIMM 8-Channel memory per processor RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration. |
|
| LAN | Front (I/O board - CFPG440): 2 x 10Gb/s LAN (1 x Intel® X710-AT2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN Rear (MLAN board - CDB66): 1 x 10/100/1000 Mbps Management LAN [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default. |
|
| Video | Integrated on ASPEED® AST2600 - 1 x VGA port |
|
| Storage | Front hot-swap: 8 x 2.5" Gen5 NVMe - (NVMe from PEX89104) Internal M.2: 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1 |
|
| Modular GPU | NVIDIA HGX™ B200 with 8 x SXM GPUs | |
| Expansion Slots | PCIe Bridge Board - CBG76: - 8 x FHHL x16 (Gen5 x16), from PEX89104 PCIe Bridge Board - CPBG045 x 2: - 4 x FHHL x16 (Gen5 x16), from PEX89048 |
|
| Front I/O | I/O board - CFPG440: 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port (default) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x Storage activity LED 1 x System status LED |
|
| Rear I/O | MLAN board - CDB66: 1 x MLAN port |
|
| Security Modules | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012 |
|
| Power Supply | 6+6 3000W 80 PLUS Titanium redundant power supplies AC Input: - 115-127V~/ 14.2A, 50-60Hz - 200-220V~/ 15.8A, 50-60Hz - 220-240V~/ 14.9A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 14A DC Output: - Max 1450W/ 115-127V~ +54V/ 26.6A +12Vsb/ 3A - Max 2900W/ 200-220V~ +54V/ 53.4A +12Vsb/ 3A - Max 3002.4W/ 220-240V~ or 240Vdc Input +54V/ 55.6A +12Vsb/ 3A Note: The system power supply requires C19 power cord. |
|
| OS Compatibility | Windows Server 2022 or later Red Hat Enterprise Linux 8.10 (x64) or later Red Hat Enterprise Linux 9.4 (x64) or later Red Hat Enterprise Linux 9.5 (x64) or later SUSE Linux Enterprise Server 15 SP4 (x64) or later SUSE Linux Enterprise Server 15 SP5 (x64) or later SUSE Linux Enterprise Server 15 SP6 (x64) or later Ubuntu 24.04 LTS (x64) or later Ubuntu 24.04.1 LTS (x64) or later Ubuntu 24.04.2 LTS (x64) or later Citrix Hypervisor 8.2 LTSR CU1 or later XenServer 8.4 |
|
| System Fans | Motherboard: 2 x 60x60x56mm / 4 x 60x60x76mm PCIe slots: 4 x 80x80x56mm GPU tray: 15 x 80x80x80mm |
|
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
|
| Package Dimensions | 1200 x 800 x 620 mm | |
| Package Contents | 1 x G894-SD1-AAX5 2 x CPU heatsinks 4 x Carriers 1 x L-shape Rail kit |
|
| Part Numbers | - Barebone with NVIDIA module: 6NG894SD1DR000AAX5* - Motherboard: 9MSB4PE0UR-000* - L-shape Rail kit: 25HB2-UM6100-K0R - CPU heatsink: 25ST1-323208-A0R - Front panel board - CFPG440: 9CFPG440NR-00* - Backplane board - CBPG641: 9CBPG641NR-00* - Fan module 60x60x56mm: 25ST2-665623-S1R - Fan module 60x60x76mm: 25ST2-667621-A0R - Fan module 80x80x56mm: 25ST2-885622-A0R - Fan module 80x80x80mm: 25ST2-888038-A0R - PCIe bridge board - CPBG045: 9CPBG045NR-00* - PCIe switch board - CBG76: 9CBG76NR-00* - Rear MLAN board - CDB66: 9CDB66NR-00* - Power supply: 25EP0-203K01-D0S |
|
| Order Information | ||
| Manufacturer SKU | G894-SD1-AAX5 (6NG894SD1DR000AAX5) | |
| System Configuration | G894-SD1-AAX5 (6NG894SD1DR000AAX5) configured by Gigabyte as Complete System | |
