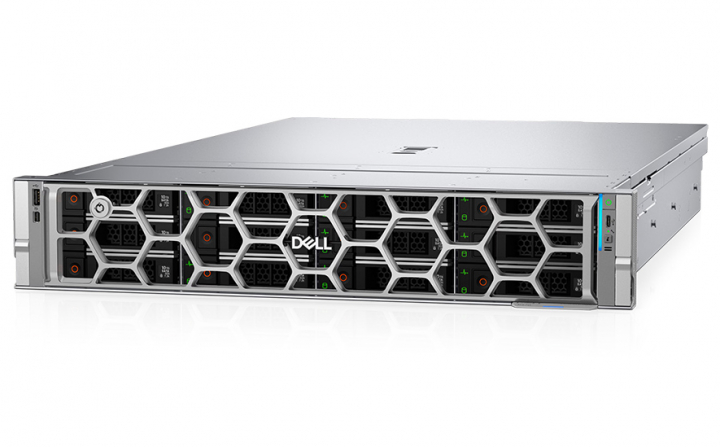

Dell PowerEdge R570 210-BPCH | Single Intel Xeon 2U Rack Server
long delivery time
Advantages:
- Virtualization
- Scale-Out Database
- Medium VM Density or VDI
- Software-Defined Storage Node
- Manufacturer: Dell
-
Order number:
1254942
-
Manufacturer SKU:
210-BPCH
Configuration not found? Please use our server request form!
Dell PowerEdge R570 (210-BPCH): Streamlined Performance and Scalable One-Socket Xeon 6 CPU... more
210-BPCH Product Information
Dell PowerEdge R570 (210-BPCH): Streamlined Performance and Scalable One-Socket Xeon 6 CPU for Balanced Data Centre Performance in 2U
CPU:
Single Socket LGA 7529, Intel Xeon 6 Series Processors
Up to 144 E-Cores / 86 P-Cores per Processor with R1S option, supports up to 350W cTDP
GPU Accelerators:
Up to 3x 400W DW, Up to 4x 75W SW
RAM:
16x DIMM slots, up to 4TB RAM DDR5-6400MT/s RDIMM ECC
LAN:
1x 1GbE Dedicated BMC Ethernet Port
2x OCP NIC 3.0 cards (optional)
Expansion Slots:
2x PCIe Gen5 x16 Full-Height, Full-Length slots
4x PCIe Gen5 x16 Full-Height, Half-Length slots
M.2:
2x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2x M.2 NVMe SSDs or USB
Storage:
— Front bays
Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB*
— Rear bays
Up to 4 x EDSFF E3.S Gen5 NVMe max 61.44 TB
| SKU Overview | ||
|---|---|---|
| R570 (210-BPCH) | Single Intel Xeon 6 with E/P-Cores CPU, 32x + 4x E3.S NVMe Hot-Swap SSD drive bays, 6x PCIe Gen5 (2x FHFL, 4x FHHL), 2x 1500W redundant PSUs | |
Datasheet for Dell PowerEdge R570 (210-BPCH)
| Processor | |
|---|---|
| CPU | Single Intel® Xeon 6 E- core processor with up to 144 cores per processor or Single Intel® Xeon 6 P- core processor with up to 86 Cores with R1S option. |
| Chipset | |
|---|---|
| - |
| GPU Accelerators | |
|---|---|
| Max GPU Count | Up to 3 x 400W DW; Up to 4 x 75W SW |
| System Memory | |
|---|---|
| Memory | 16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s Intel® Xeon® 6 E-core processor - supports 1 TB max Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option - supports 4 TB max Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | |
|---|---|
| Internal Controllers (RAID) | PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter |
| External Controllers | PERC H965e*, HBA 465e* |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs*, USB |
| Storage | |
|---|---|
| Front Bays | Up to 12 x 3.5-inch SAS (HDD) RAID max 288 TB Up to 12 x 3.5-inch SAS/SATA (HDD) RAID max 288 TB Up to 8 x 2.5-inch NVMe (SSD) RAID max 122.88 TB Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB Up to 8 x 2.5-inch SAS/SATA/Universal (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) RAID max 61.44 TB Up to 24 x 2.5-inch SAS4/SATA (HDD/SSD) max 92.16 TB Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 122.88 TB Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe 122.88 TB Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 245.76 TB Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 245.76 TB Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB |
| Rear bays | Up to 4 x EDSFF E3.S Gen5 NVMe max 61.44 TB |
| Power Supplies | |
|---|---|
| 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant 1500 W 277 Vac and HVDC Titanium, hot swap redundant 1400 W -48 VDC, hot swap redundant* |
| Cooling Options | |
|---|---|
| Air cooling |
| Fans | |
|---|---|
| Up to six hot plug fans |
| Dimensions | |
|---|---|
| Height – 86.8 mm (8.68cm) Width – 482.0 mm (48.20cm) Depth – 802.38 mm (80.23cm) with bezel Depth – 801.49 mm (80.14cm) without bezel Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (81.45cm) without bezel Note: Front I/O configuration will not have a bezel. |
| Form Factor | |
|---|---|
| 2U rack server |
| Embedded Management | |
|---|---|
| iDRAC iDRAC Direct iDRAC RESTfull API with redfish RACADM CLI iDRAC Service Module (iSM) |
| Bezel | |
|---|---|
| Optional security bezel |
| Security | |
|---|---|
| • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC10 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified • Chassis Intrusion Detection |
| OCP Network options | |
|---|---|
| Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional) |
| Embedded NIC | |
|---|---|
| 1 Gb dedicated BMC Ethernet port |
| Ports | |
|---|---|
| Front Ports 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x USB 2.0 Type-A (optional LCP - Secondary KVM) 1 x Mini DisplayPort (optional LCP - Secondary KVM) 1 x DB9 Serial (with front I/O configuration) 1 x Dedicated BMC Ethernet port (with front I/O configuration) Rear Ports 1 x Dedicated BMC Ethernet port 2 x USB 3.1 Type A ports 1 x VGA Internal Ports 1 x USB 3.1 Type A port |
| PCIe | |
|---|---|
| Up to six PCIe slots (x16 connector) Slot 2: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length Slot 3: 1 x16 Gen5 Full Height, Half Length Slot 4: 1 x16 Gen5 Full Height, Half Length* or 1 x16 Full Height, Full Length* or 1 x16 OCP3.0 Slot 6: 1 x4 Gen4 Boss (optional) Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length Slot 9: 1 x16 Gen5 Full Height, Half Length Slot 10: 1 x16 OCP3.0 Slot 31: 1 x16 Gen5 Full Height, Half Length Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional) Slot 36: 1 x16 Gen5 Full Height, Half Length Slot 38: 1 x16 OCP3.0 Gen5 PCIe slots: 4 |
|
| Operating System and Hypervisors | |
|---|---|
| Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | R570 (210-BPCH) | |
| System Building | R570 (210-BPCH) can be configured individually | |
