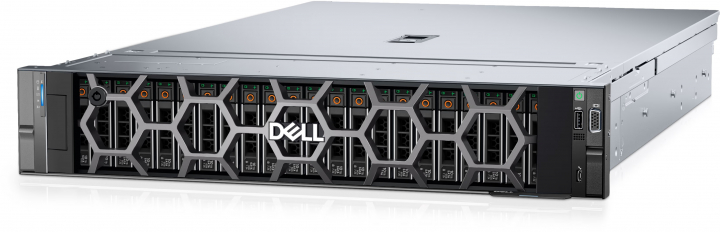

Dell R760 210-BDZY | Dual Intel Xeon 2U PowerEdge Rack Server
long delivery time
Advantages:
- Mixed Workload Standardization
- Database and Analytics
- Virtual Desktop Infrastructure
- Mainstream Server
- Manufacturer: Dell
-
Order number:
1254907
-
Manufacturer SKU:
210-BDZY
Configuration not found? Please use our server request form!
Dell PowerEdge R760 (210-BDZY): Dual socket server with 5th generation Xeon® processors and... more
210-BDZY Product Information
Dell PowerEdge R760 (210-BDZY): Dual socket server with 5th generation Xeon® processors and support for up to 2 DW GPU cards in 2U
CPU:
Dual 5th/4th Gen Intel Xeon Scalable Processors
Up to 64 cores per processor, supports up to 350W cTDP
GPU Options:
Up to 2x 350W DW
Up to 6x 75W SW
RAM:
32x DIMM slots, up to 8TB RAM DDR5-5600MT/s RDIMM ECC
LAN:
1x RJ45 Dedicated iDRAC Ethernet Port
Expansion Slots:
Up to 8x PCIe Gen5/Gen4 slots
M.2:
2x M.2 NVMe SSDs via NVMe BOSS-N1 (HWRAID)
Storage:
Front Bays
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB or
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB or
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB or
Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB or
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
| SKU Overview | ||
|---|---|---|
| R760 (210-BDZY) | Dual 5th/4th Gen Intel Xeon Scalable CPU, 24x 2.5" U.2 NVMe/SAS/SATA + 4x E3.S Hot-Swap drive bays, 8x PCIe Gen5, 2x 3200W redundant PSUs | |
Datasheet for Dell R760 (210-BDZY)
| Processor | |
|---|---|
| CPU | Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores per processor and with optional Intel® QuickAssist Technology Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor |
| Chipset | |
|---|---|
| - |
| GPU Accelerators | |
|---|---|
| Max GPU Count | Up to 2 x 350 W DW and 6 x 75 W SW |
| System Memory | |
|---|---|
| Memory | 32 DDR5 DIMM slot, supports RDIMM 8 TB max Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | |
|---|---|
| Internal Controllers | PERC H965i, PERC H755, PERC H755N, PERC H355 |
| External Controller | PERC H965e |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB |
| External HBA (non-RAID) | HBA355e, HBA355i, HBA465i |
| Software RAID | S160 |
| Storage | |
|---|---|
| Front Bays | Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB |
| Rear bays | Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB |
| Power Supplies | |
|---|---|
| 3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant 2800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1100 W -(48—60) VDC, hot swap redundant 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 700 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant |
| Cooling Options | |
|---|---|
| Air cooling Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
| Fans | |
|---|---|
| Standard (STD) fans/High performance Silver (HPR Silver) fans/ High performance Gold (HPR Gold) fans Up to 6 hot plug fans |
| Dimensions | |
|---|---|
| Height – 86.8 mm (8.68cm) Width – 482 mm (48.2cm) Depth – 772.13 mm (77.21cm) with bezel 758.29 mm (75.82cm) without bezel |
| Form Factor | |
|---|---|
| 2U rack server |
| Embedded Management | |
|---|---|
| • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Bezel | |
|---|---|
| Optional LCD bezel or security bezel |
| OpenManage Software | |
|---|---|
| • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
| Mobility | |
|---|---|
| OpenManage Mobile |
| OpenManage Integrations | |
|---|---|
| • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | |
|---|---|
| Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
| Embedded NIC | |
|---|---|
| 2 x 1GbE LOM card (optional) | |
| Network Options | |
|---|---|
| 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. 1 x Management Interface Card (MIC) to support Dell Data Processing Unit (DPU) card (optional) Note: The system allows either LOM card or MIC card to be installed in the system. |
|
| GPU Options | |
|---|---|
| Up to 2 x 350 W DW and 6 x 75 W SW | |
| Ports | |
|---|---|
| Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
|
| PCIe | |
|---|---|
| Up to eight PCIe slots: Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 3: 1 x16 Gen4 Low profile, Half length Slot 4: 1 x8 Gen4 Full height, Half length Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length Slot 6: 1 x16 Gen4 Low profile, Half length Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length |
|
| Operating System and Hypervisors | |
|---|---|
| Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | R760 (210-BDZY) | |
| System Building | R760 (210-BDZY) can be configured individually | |
