XJ1-40604-07 | AIC 60-Bay JBOD Storage Enclosure, Single SAS 12G

Preview: AIC J4060-04-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4060-04-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4060-04-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4060-04-35X 4U JBOD SAS Storage Expansion

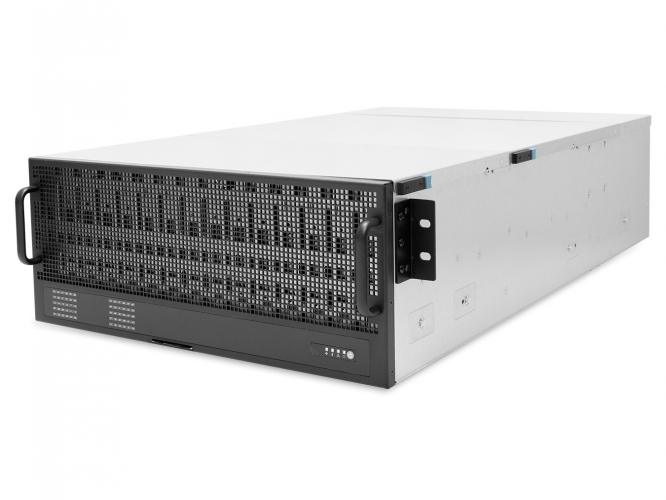

AIC J4060-04-35X 4U JBOD SAS Storage Expansion
AIC J4060-04-35X 4U JBOD SAS Storage Expansion
AIC J4060-04-35X 4U JBOD SAS Storage Expansion
AIC J4060-04-35X 4U JBOD SAS Storage Expansion

very few qty in stock

Advantages:

  • 4U high-density JBOD supports 60 hot-swap 3.5” SAS/SATA drive bays
  • IPMI compliance BMC Intelligent Enclosure Management
  • Hot swap design for maintenance and management
  • Enclosure Cable Management Kit
  • Optimized for 1000mm Depth Rack-mount Server Cabinet
€3,670.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:
Christoph Handl
Sales
+49 (0)4181 235770
Christoph Handl
request quotation
  • Manufacturer: AIC
  • Order number:

    1255281

  • Manufacturer SKU:

    XJ1-40604-07

Configuration not found? Please use our server request form!

Description
AIC XJ1-40604-07: High-Density 4U JBOD Enclosure with 60-Bay for Storage Expansion... more
Close menu

XJ1-40604-07 Product Information

AIC XJ1-40604-07: High-Density 4U JBOD Enclosure with 60-Bay for Storage Expansion



4U JBOD Storage Enclosure

60x 3.5" Hot-Swap drive bays

Hot swap JBOD with single SAS 12G expander controller

Single BMC

Tool-less HDD tray

2x 1300W Hot-Swap Redundant Power Supplies 80+ Titanium

Tool-less Rail Kit

Datasheet
Close menu

Datasheet for AIC XJ1-40604-07

General
Number of Expander Single
Expander Chip: LSI SAS35X40
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface: 12Gb SAS (Single/Dual) / 6Gb SATA (Single)
Form Factor: 3.5”
Administration / Management
Admin/Firmware Upgrade: In-band & Serial port interface
IEM port (optional)
LED Indicators, Audible Alarm: Yes
Hot swap & Redundancy
Drive Bays: 60
Cooling:  6 x 120x38mm hot swap fans
Power Supply: 1300W 1+1 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules: -
Electrical & Environment
Universal A/C Input: 100-127V~,50/60Hz,12A
200-240V~,50/60Hz, 8.5A
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H):
• mm: 434 x 750 x 176
• inches: 17.1 x 29.5 x 6.9
Gross Weight (w/ PSU, w/o Rail & Disks):
• kgs: 58.2
• lbs: 128.3
Packaging Dimension (W x D x H)
• mm: 650 x 1140 x 530
• inches: 25.6 x 44.9 x 20.9
Mounting:
Standard: 37” tool-less rail
Option: Cable Management Kit
Order Information
Manufacturer SKU XJ1-40604-07
System Building XJ1-40604-07 configured as a disk expansion chassis; drive population customisable.
