XJ1-40244-06 | AIC 24-Bay JBOD Storage Enclosure, Dual SAS 12G

Preview: AIC J4024-04-35X 4U JBOD Storage Expansion
Preview: AIC J4024-04-35X 4U JBOD Storage Expansion
Preview: AIC J4024-04-35X 4U JBOD Storage Expansion

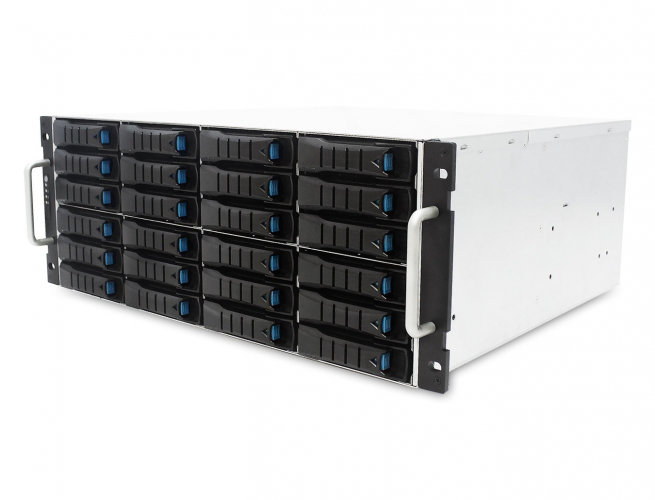

AIC J4024-04-35X 4U JBOD Storage Expansion
AIC J4024-04-35X 4U JBOD Storage Expansion
AIC J4024-04-35X 4U JBOD Storage Expansion

very few qty in stock

Advantages:

  • Board to board connections no signal cable and no PSU cable
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Short-depth
  • Clear indicators
  • Optimized thermal solution
  • BMC onboard
€2,260.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:
Gunnar Dietrich
Sales
+49 (0)4181 235770
Gunnar Dietrich
request quotation
  • Manufacturer: AIC
  • Order number:

    1255280

  • Manufacturer SKU:

    XJ1-40244-06

Configuration not found? Please use our server request form!

Description
AIC XJ1-40244-06: 4U JBOD with 24 bays and dual 12G expander   4U JBOD Storage... more
Close menu

XJ1-40244-06 Product Information

AIC XJ1-40244-06: 4U JBOD with 24 bays and dual 12G expander



4U JBOD Storage Enclosure

24x 3.5" Hot-Swap drive bays

Hot swap JBOD with dual SAS 12G expander controller

Dual BMC

Tool-less HDD tray

2x 800W Hot-Swap Redundant Power Supplies 80+ Titanium

Tool-less Rail Kit

Datasheet
Close menu

Datasheet for AIC XJ1-40244-06

General
Number of Expander Dual
Expander Chip: LSI SAS35X40
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface: 12Gb & 6Gb SAS
Form Factor: 3.5”
Administration / Management
Admin/Firmware Upgrade: In-band & Serial port interface
IEM port (optional)
LED Indicators, Audible Alarm: Yes
Hot swap & Redundancy
Drive Bays: 24 bays
Cooling: 4 x 60x56mm hot-swap fans
Power Supply: 800W 1+1 hot-swap redundant 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules: Dual expanders (Optional)
Electrical & Environment
Universal A/C Input: 100-127V~,50/60Hz,10A
200-240V~,50/60Hz, 5A
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H) (with chassis ears):
• mm: 438 x 385.5 x 174.4
• inches: 17.2 x 15.1 x 6.9
Gross Weight (w/ PSU, w/o Rail & Disks):
• kgs: 25.93
• lbs: 57.17
Packaging Dimension (W x D x H)
• mm: 605 x 680 x 446
• inches: 23.8 x 26.8 x 17.6
Mounting:
Standard: 20” tool-less rail
Order Information
Manufacturer SKU XJ1-40244-06
System Building XJ1-40244-06 configured as a disk expansion chassis; drive population customisable.
