XJ1-20246-05 | AIC 24-Bay JBOD Storage Enclosure, Single SAS 12G

Preview: AIC J2024-06-35X 2U JBOD Storage Chassis Solution
Preview: AIC J2024-06-35X 2U JBOD Storage Chassis Solution
Preview: AIC J2024-06-35X 2U JBOD Storage Chassis Solution

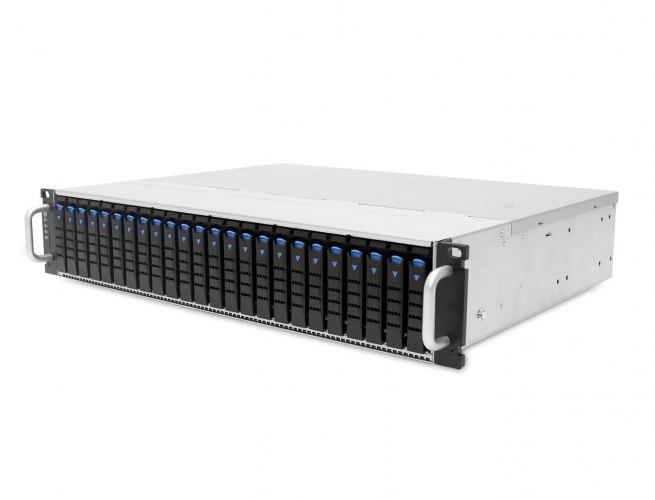

AIC J2024-06-35X 2U JBOD Storage Chassis Solution
AIC J2024-06-35X 2U JBOD Storage Chassis Solution
AIC J2024-06-35X 2U JBOD Storage Chassis Solution

very few qty in stock

Advantages:

  • Ruggedized design (Internal board-to-board connection)
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Short-depth
  • Clear front panel LED indicators
  • Optimized thermal solution
  • BMC onboard
€1,630.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:
Gunnar Dietrich
Sales
+49 (0)4181 235770
Gunnar Dietrich
request quotation
  • Manufacturer: AIC
  • Order number:

    1255277

  • Manufacturer SKU:

    XJ1-20246-05

Configuration not found? Please use our server request form!

Description
AIC XJ1-20246-05: 2HE 12G JBOD 24-Bay Tool-less Design with Single Expander  ... more
Close menu

XJ1-20246-05 Product Information

AIC XJ1-20246-05: 2HE 12G JBOD 24-Bay Tool-less Design with Single Expander



2U JBOD Storage Enclosure

24x 2.5" Hot-Swap drive bays

Hot swap JBOD with single SAS 12G expander controller

Single BMC

Tool-less HDD tray

2x 800W Hot-Swap Redundant Power Supplies 80+ Titanium

Slide Rail Kit



Datasheet
Close menu

Datasheet for AIC XJ1-20246-05

General
Number of Expander Single
Expander Chip: LSI SAS35X40
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface: 12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
Form Factor: SFF 2.5”
Administration / Management
Admin/Firmware Upgrade: In-band & Serial port interface
IEM port (optional)
LED Indicators, Audible Alarm: Yes
Hot swap & Redundancy
Drive Bays: 24-bays
Cooling: 2 x 60x56mm hot-swap fans
Power Supply: 800W 1+1 hot-swap redundant 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules: -
Electrical & Environment
Universal A/C Input: 100-127V~,50/60Hz,10A
200-240V~,50/60Hz, 5A
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H) (with chassis ears):
• mm: 438 x 345 x 87.5
• inches: 17.2 x 13.6 x 3.4
Gross Weight (w/ PSU, w/o Rail & Disks):
• kgs: 20.05
• lbs: 44.2
Packaging Dimension (W x D x H)
• mm: 605 x 640 x 318
• inches: 23.8 x 25.2 x 12.5
Mounting:
Standard: 20” rail
Order Information
Manufacturer SKU XJ1-20246-05
System Building XJ1-20246-05 configured as a disk expansion chassis; drive population customisable.
