XJ1-20124-03 | AIC 12-Bay JBOD Storage Enclosure, Single SAS 24G

Preview: AIC J2012-04-04X 2U JBOD Storage Chassis Solution
Preview: AIC J2012-04-04X 2U JBOD Storage Chassis Solution
Preview: AIC J2012-04-04X 2U JBOD Storage Chassis Solution

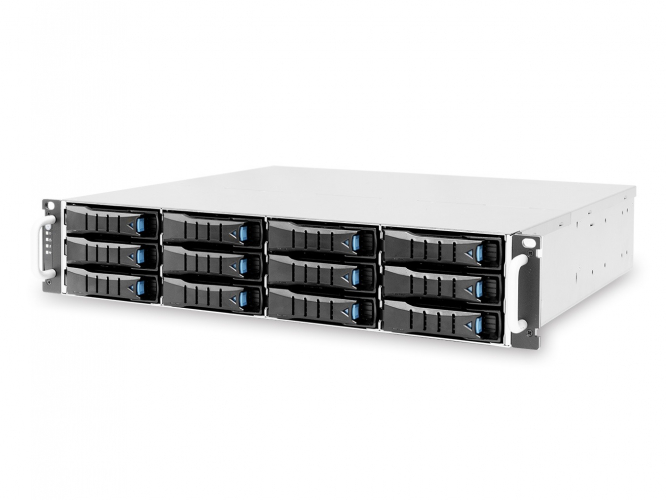

AIC J2012-04-04X 2U JBOD Storage Chassis Solution
AIC J2012-04-04X 2U JBOD Storage Chassis Solution
AIC J2012-04-04X 2U JBOD Storage Chassis Solution

very few qty in stock

Advantages:

  • Ruggedized design (Internal board-to-board connection)
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Short-depth
  • Clear front panel LED indicators
  • Optimized thermal solution
  • BMC onboard

special highlight

24G expander

€1,600.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:
Christoph Handl
Sales
+49 (0)4181 235770
Christoph Handl
request quotation
  • Manufacturer: AIC
  • Order number:

    1255275

  • Manufacturer SKU:

    XJ1-20124-03

Configuration not found? Please use our server request form!

Description
AIC XJ1-20124-03: Next-Gen 24G SAS JBOD in 2U with 12x 3.5" drive bays and single expander... more
Close menu

XJ1-20124-03 Product Information

AIC XJ1-20124-03: Next-Gen 24G SAS JBOD in 2U with 12x 3.5" drive bays and single expander



2U JBOD Storage Enclosure

12x 3.5" Hot-Swap drive bays

Hot swap JBOD with single SAS 24G expander controller

Single BMC

Tool-less HDD tray

2x 800W Hot-Swap Redundant Power Supplies 80+ Titanium

Slide Rail Kit



Datasheet
Close menu

Datasheet for AIC XJ1-20124-03

General
Number of Expander Single
Expander Chip: LSI SAS4X40
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)
Drives Supported
Drive Interface: • 24Gb & 12Gb SAS if using dual expanders
• 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor: 3.5"
Administration / Management
Admin/Firmware Upgrade: • In-band & Serial port interface
• IEM port (optional)
LED Indicators, Audible Alarm: Yes
Hot swap & Redundancy
Drive Bays: 12-bays
Cooling: 2 x 60x56mm hot-swap fans
Power Supply: 800W 1+1 hot-swap redundant 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules: -
Electrical & Environment
Universal A/C Input: • 100-127V~,50/60Hz,10A
• 200-240V~,50/60Hz, 5A
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H)
• mm: 438 x 385.45 x 88.2
• inches: 17.2 x 15.2 x 3.5
Gross Weight (w/ PSU, w/o Rail & Disks):
• kgs: 20.98
• lbs: 46.25
Packaging Dimension (W x D x H)
• mm: 605 x 680 x 318
• inches: 23.8 x 26.8 x 12.5
Mounting
Standard: • 20” rail
Order Information
Manufacturer SKU XJ1-20124-03
System Building XJ1-20124-03 configured as a disk expansion chassis; drive population customisable.
