SYS-F629P3-RC0B | Supermicro Dual Xeon FatTwin 4-Node Server
long delivery time
Advantages:
- General Server
- Data Center
- Financial Applications
special highlight
FatTwin Server
with high-density 4 hot-plug nodes
- Manufacturer: Supermicro
-
Order number:
1074468
-
Manufacturer SKU:
SYS-F629P3-RC0B
Configuration not found? Please use our server request form!
Supermicro SYS-F629P3-RC0B: FatTwin Multi-node System highly configurable with Intel X11 Series... more
SYS-F629P3-RC0B Product Information

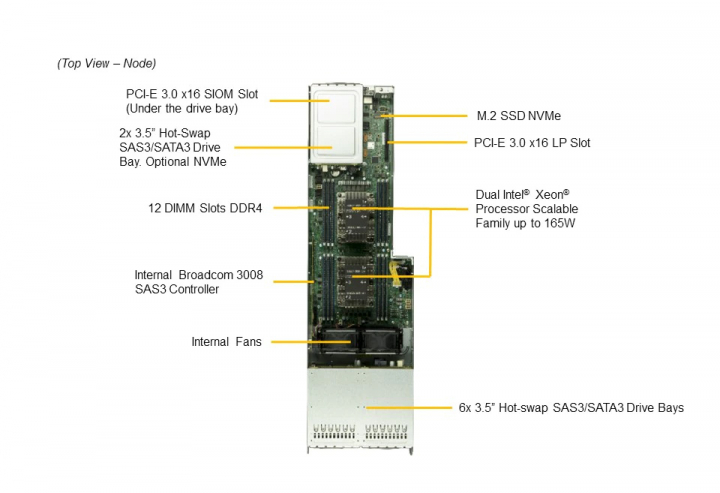

Supermicro SYS-F629P3-RC0B: FatTwin Multi-node System highly configurable with Intel X11 Series on 4U
Mainboard:
Supermicro X11DPFR-SN
CPU:
Dual Socket P (LGA-3647), 2nd Gen Intel Xeon Scalable Processors
Up to 28 Cores, support up to 165W TDP with IVR
RAM:
12x DIMM slots, up to 3TB RAM DDR4-2933MHz
Supports for Intel Optane DCPMM
LAN:
1x RJ45 dedicated IPMI LAN port
1x SIOM flexible Network card
Expansion Slots:
1 PCI-E 3.0 x16 slot
1 PCI-E 3.0 x16 (SIOM) slot
M.2:
1x M.2 Interface, PCI-E 3.0 x4, Form factor 2260/2280/22110, M-Key
Storage:
8x 3.5" Hot-swap SAS3/SATA3 or
6x 3.5" Hot-swap SAS3/SATA3 + 2 optional NVMe U.2
Datasheet for Supermicro SYS-F629P3-RC0B
| Processor / Cache (per Node) | |
|---|---|
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-165W with IVR |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) Extended thermal solutions may be required to support CPUs higher than 165W TDP |
| System Memory (per Node) | |
|---|---|
| Memory Capacity | 12 DIMM slots Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory †† Cascade Lake only |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C621 chipset |
| SAS | SAS3 (12Gbps) via Broadcom 3008 |
| Network Controllers | Flexible networking via SIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output (per node) | |
|---|---|
| SAS | 8 SAS3 (12Gbps) ports |
| NVMe | 2 NVMe U.2 option |
| LAN | SIOM flexible Network card 1 RJ45 dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| VGA | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management | |
|---|---|
| Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SuperDoctor® 5 Watchdog |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-F424AS2-R1K23BP |
| Dimensions | |
|---|---|
| Width | 17.63" (448mm) |
| Height | 6.96" (177mm) |
| Depth | 29" (737mm) |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
| Weight | Net Weight: 150 lbs (68.04 kg) Gross Weight: 200 lbs (90.71 kg) |
| Available Colors | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button UID button |
| LEDs | Power status LED Hard drive activity LED Network activity LEDs Information LED (UID, Fan failure, Overheat) |
| Expansion Slots | |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x16 (Low-profile) 1 PCI-E 3.0 x16 (SIOM) |
| Drive Bays (per node) | |
|---|---|
| Hot-swap | 8 Hot-swap 3.5" SAS3/SATA3 or 6 hot-swap 3.5"" SAS3/SATA3 + 2 optional NVMe U.2 |
| M.2 | M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key |
| Backplane | |
|---|---|
| 1 SAS/SATA backplane | |
| System Cooling | |
|---|---|
| Fans | 2x 8cm 14 RPM middle fans |
| Power Supply (76mm Width) | |
|---|---|
| 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) |
76 x 40 x 336 mm |
| Input | 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-F629P3-RC0B | |
| System Building | SYS-F629P3-RC0B can be configured individually | |
