Supermicro SYS-620H-TN12R | Dual Xeon 2U Rack Server
Advantages:
- Virtualization
- Software-defined Storage
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
special highlight

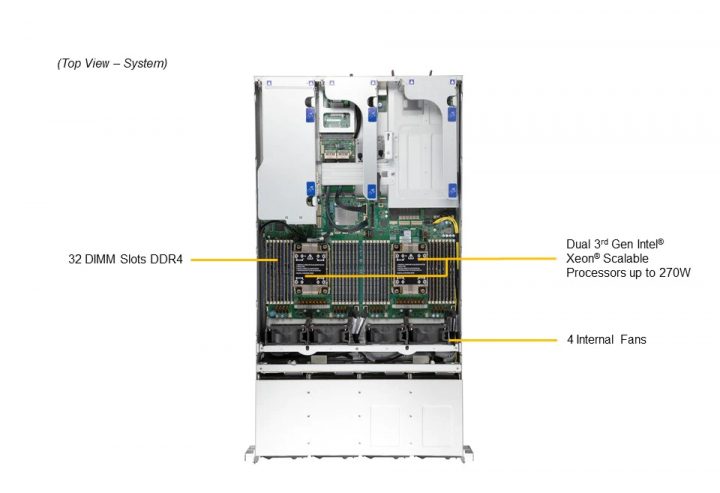

32 DIMM Slots, Up to 8TB RAM
12x U.3 Hybrid Slots
- Manufacturer: Supermicro
-
Order number:
1250008
-
Manufacturer SKU:
SYS-620H-TN12R
Configuration not found? Please use our server request form!
SYS-620H-TN12R Product Information
Supermicro SYS-620H-TN12R: Enterprise server suitable for virtualization Software-Defined Storage
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro X12DHM-6
CPU:
Dual Socket P+ (LGA-4189), 3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
RAM:
32x DIMM slots
Up to 8TB: 32x 256 GB DRAM
Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
3200MHz ECC DDR4
Intel® Optane™ persistent memory 200 series
Network Connectivity:
2x 1GbE BaseT with Intel® i350-AM2 (optional)
4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
2x 10GbE SFP+ with Intel® X710-BM2 (optional)
4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
4x 1GbE BaseT with Intel® i350-AM4 (optional)
Expansion Slots:
8x PCI-E 4.0 x8 or 4x PCI-E 4.0 x16 slots
M.2:
2 M.2 NVMe OR 2 M.2 SATA3
Storage:
12x 3.5" NVMe/SATA/SAS hot-swap drive bays
Datasheet for Supermicro SYS-620H-TN12R
| Processor/Cache | |
|---|---|
| CPU | Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors 3 UPI up to 11.2GT/s Support CPU TDP 270W * |
| Cores | Up to 40C/80T; Up to 60MB Cache |
| System Memory | |
|---|---|
| Memory Capacity | 32 DIMM slots UP to 8TB: 32x 256 GB DRAM UP to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) 2x 10GbE SFP+ with Intel® X710-BM2 (optional) 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) 4x 1GbE BaseT with Intel® i350-AM4 (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| System Bios | |
|---|---|
| BIOS Type | AMI 256MB SPI Flash |
| Management | |
|---|---|
| Software | Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-HS829-R1K24P |
| Dimensions and Weight | |
|---|---|
| Height | 3.5" (88.9mm) |
| Width | 17.2" (436.88mm) |
| Depth | 31.6" (803mm) |
| Package | 10.07" (H) x 23.81" (W) x 37.28" (D) |
| Weight | Net Weight: 37 lbs (16.8 kg) Gross Weight: 63 lbs (28.6 kg) |
| Available Color | N/A |
| Front Panel | |
|---|---|
| Buttons | Power On/Off UID button |
| LEDs | HDD activity LAN1 activity Power status System information |
| Expansion Slots | |
|---|---|
| PCI-Express | Slot 1: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L Slot 2: (Optional) PCI-E 4.0 x8 FH, 10.5"L Slot 3: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L Slot 4: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L Slot 5: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L Slot 6: (Optional) PCI-E 4.0 x8 FH, 10.5"L Slot 7: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L Slot 8: (Optional) PCI-E 4.0 x8 FH, 10.5"L |
| Note | If Slot 1 is configured as PCI-E x16, Slot 2 will be disabled; If Slot 3 is configured as PCI-E x16, Slot 4 will be disabled; If Slot 5 is configured as PCI-E x16, Slot 6 will be disabled; If Slot 7 is configured as PCI-E x16, Slot 8 will be disabled. |
| Drive Bays / Storage | |
|---|---|
| Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling | |
|---|---|
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Power Supply | |
|---|---|
| 1200W Redundant Power Supplies with PMBus | |
| Dimension (W x H x L) |
73.5 x 40 x 265 mm |
| AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz 1200W: 200-240Vac / 7.5A-6A / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 166A / Min: 0A (200Vac-220Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-620H-TN12R | |
| System Building | SYS-620H-TN12R configured by Supermicro as Complete System | |
