Supermicro SYS-620BT-HNTR | BigTwin Dual Xeon 2U Rack Server
long delivery time
Advantages:
- Hyperconverged Infrastructure
- Container Storage
- Scale-Out File Server
- Manufacturer: Supermicro
-
Order number:
1250043
-
Manufacturer SKU:
SYS-620BT-HNTR
Configuration not found? Please use our server request form!
Supermicro SYS-620BT-HNTR: BigTwin SuperServer u ltimate hyper-converged Multi-Node Server... more
SYS-620BT-HNTR Product Information

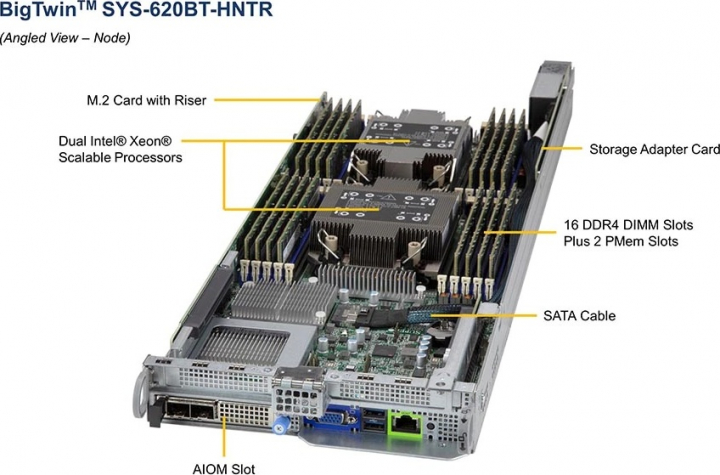

Supermicro SYS-620BT-HNTR: BigTwin SuperServer ultimate hyper-converged Multi-Node Server System supports the latest Intel Xeon Scalable Processor 3rd Gen
Mainboard:
Supermicro X12DPT-B6
CPU:
Dual Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 32 Cores / 64 Threads, support CPU TDP 185W
RAM:
20x DIMM slots (16 DRAM + 4 PMem)
Up to 6TB RAM DDR4-3200MHz
Intel® Optane™ persistent memory 200 series
LAN:
via AIOM
1 RJ45 dedicated BMC LAN port
Expansion Slots:
2 PCI-E 4.0 x16 (LP) slots
M.2:
2x M.2 NVMe or 2x M.2 SATA3
Storage:
3x 3.5" hot-swap NVMe/SATA drive bays (3x 2.5" NVMe hybrid; 3x 3.5" NVMe hybrid)
Datasheet for Supermicro SYS-620BT-HNTR
| Processor/Cache (per Node) | |
|---|---|
| CPU | Dual Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 185W * |
| Cores | 36C/64T |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. |
| System Memory (per Node) | |
|---|---|
| Memory | Memory Capacity: 20 DIMM slots (16 DRAM + 4 PMem) UP to 4TB: 16x 256 GB DRAM UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200MHz ECC DDR4 RDIMM Intel® Optane™ persistent memory 200 series |
| On-Board Devices (per Node) | |
|---|---|
| Chipset | Intel® C621A |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |

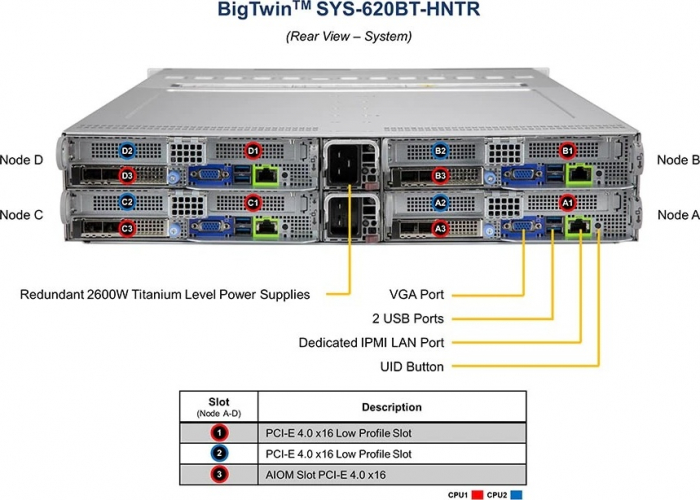

| Input / Output (per Node) | |
|---|---|
| LAN | 1 RJ45 Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (2 rear) |
| Video | 1 VGA port |
| Others | M.2 for boot drive only |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB Flash ROM |
| Management | |
|---|---|
| Software | Supermicro Out of Band (OOB) License (Included per Node) SuperCloud Composer SSM Intel® Node Manager SPM KVM with dedicated LAN IPMI 2.0 SUM Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-827BQ-000NP |
| Dimensions and Weight | |
|---|---|
| Height | 3.47" (88mm) |
| Width | 17.68" (449mm) |
| Depth | 30.5" (774mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Net Weight: 87.13 lbs (39.52 kg) Gross Weight: 114.66 lbs (52.01 kg) |
| Available Colors | Black |

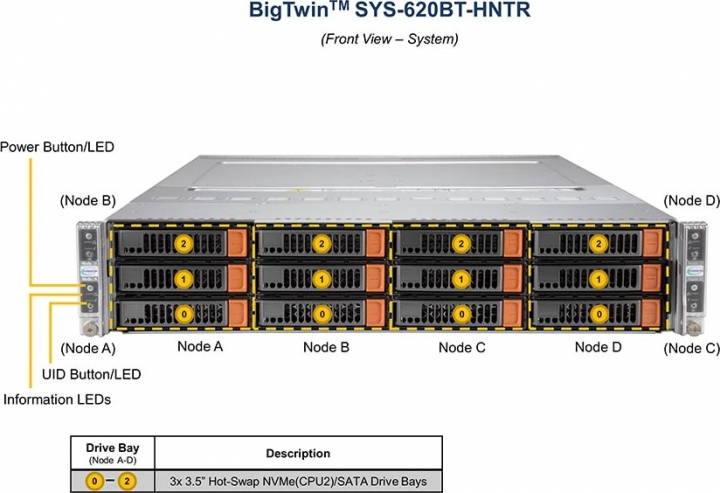

| Front Panel | |
|---|---|
| Buttons | Power On/Off button UID button |
| LEDs | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Expansion Slots (per Node) | |
|---|---|
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Internal Slot: M.2 |
| Drive Bays / Storage (per Node) | |
|---|---|
| Hot-swap | 3x 3.5" hot-swap NVMe/SATA drive bays (3x 2.5" NVMe hybrid; 3x 3.5" NVMe hybrid) |
| M.2 | 2 M.2 NVMe or 2 M.2 SATA3 |
| System Cooling | |
|---|---|
| Fans | 4x 14.9K RPM Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 1U 2600W Redundant Power Supply Titanium, 45(W) X 40(H) X 480(L) | |
| Total Output Power | 2600W: 208-240Vac 2600W: 220-240Vdc for CQC only |
| Dimension (W x H x L) | 45 x 40 x 480 mm |
| AC Input | 208-240Vac / 12.5A-15A / 50-60Hz 220-240Vdc / 12.5A-13.5A (CQC only) |
| +12V | Max: 216.6A / Min: 0A |
| 12V SB | Max: 4.5A / Min: 0A |
| Certification | Titanium Level |
| Operating Environment | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. |
Operating Temperature: |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-620BT-HNTR | |
| System Building | SYS-620BT-HNTR configured by Supermicro as Complete System | |
