SYS-E300-9A

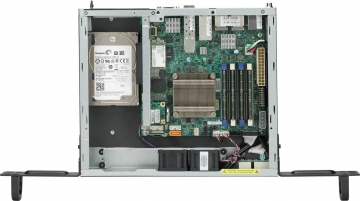

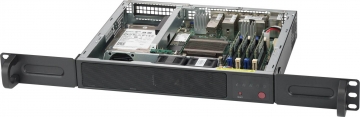

Preview: Supermicro SYS-E300-9A Mini-ITX Server

very few qty in stock

Advantages:

Network security appliance
Internet of Things (IoT)
Firewall applications

special highlight

8x Ethernet

€1,399.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:

Donna Holz

Sales

+49 (0)4181 235770

request quotation

Manufacturer: Supermicro
Order number:
1170837
Manufacturer SKU:
SYS-E300-9A

Configuration not found? Please use our server request form!

Mini 1U server for network security and firewall applications Mainboard:... more

Close menu

SYS-E300-9A Product Information

Mini 1U server for network security and firewall applications

Mainboard:

Super A2SDi-TP8F

CPU:

Single socket (FCBGA 1310), Intel Atom C3858

25W TDP

RAM:

4 SO-DIMM slots, up to 64GB DDR4-2400MHz ECC

Unbuffered ECC/non-ECC SO-DIMM

LAN:

4 RJ45 GbE LAN ports

2 RJ45 10GbE LAN ports

2 SFP 10GbE LAN ports

1 RJ45 dedicated IPMI LAN port

PCIe slots:

1 PCIe 3.0 x4 AOC slot (LP)

Storage:

2 Feste 2.5" drive bays (when AOC area is not occupied)

1 M.2 PCI-E 3.0 x4 slot, form factor: M-Key 2242/2280

Close menu

Datasheet for Supermicro SYS-E300-9A

Processor/Cache
CPU	Intel® Atom® processor C3858 FCBGA 1310 CPU TDP support 25W

System Memory
Memory Capacity	Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866/1600MHz
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	System on Chip
SATA	SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers	Quad LAN (2 10GBase-T, 2 10Gb SFP+) via Intel® C3000 SoC Quad Gigabit Ethernet LAN via Intel® i350-AM4
Graphics	Aspeed AST2400

Input / Output
SATA	2 SATA3 (6Gbps) ports
LAN	4 RJ45 Gigabit Ethernet LAN ports 2 10G SFP+ LAN ports 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
Display	1 VGA port
DOM	1 SuperDOM (Disk on Module) power connector
TPM	TPM 2.0 header

Chassis
Form Factor	Mini-1U
Model	CSE-E300

Dimensions
Width	10" (254mm) / 15" (381mm) - pkg.
Height	1.7" (43mm) / 10.87" (276mm) - pkg.
Depth	8.9" (226mm) / 5.59" (142mm) - pkg.
Weight	Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg)
Available Colors	Black

Front Panel
Buttons	Power On/Off button
LEDs	Power LED (Hard drive activity LED)

Expansion Slots
M.2	Interface: PCI-E 3.0 x4 or SATA3 Form Factor: M Key 2242/2280

Drive Bays
Internal	2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)

System Cooling
Fans	2x 40mm chassis fans

System BIOS
BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup

Management
Software	IPMI 2.0 KVM with dedicated LAN NMI SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management CPU Fan auto-off in sleep mode Power-on mode for AC power recovery
Fan	Fans with tachometer status monitoring Status monitor for speed control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
