SYS-6029TR-DTR | Supermicro 2-Node Dual Xeon 2U Rack Server
long delivery time
Advantages:
- High-performance computing (HPC)
- Virtualization
- Data Center
- Web Server
- Manufacturer: Supermicro
-
Order number:
1248470
-
Manufacturer SKU:
SYS-6029TR-DTR
Configuration not found? Please use our server request form!
Supermicro SYS-6029TR-DTR: Optimized HPC Server with 2 hot-pluggable Nodes and... more
SYS-6029TR-DTR Product Information
Supermicro SYS-6029TR-DTR: Optimized HPC Server with 2 hot-pluggable Nodes and 2TB Speicher
Mainboard:
Supermicro X11DPT-L
CPU:
Dual Socket P (LGA 3647), 2nd Gen Intel Xeon Scalable processors
Up to 22 Cores, support up to 140W TDP
RAM:
8x DIMM slots, up to 2TB RAM DDR4-2933MHz ECC
LAN:
2x RJ45 GbE LAN ports
1x RJ45 dedicated IPMI LAN port
Expansion-Slots:
2x PCI-E 3.0 x8 slots (FH/HL) oder 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x 4 (LP)
Storage:
6x 3.5" Hot-swap SATA3 HDD drive bays
2x SATA DOM + 1 SATA/NVMe M.2 Form factor 22110/2280
Datasheet for Supermicro SYS-6029TR-DTR
| Processor/Cache (per Node) | |
|---|---|
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-140W |
| Cores | Up to 22 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| System Memory (per Node) | |
|---|---|
| Memory Capacity | 8 DIMM slots Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory |
| On-Board Devices (per Node) | |
|---|---|
| Chipset | Intel® C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 support |
| Network Controllers | Intel® C621 chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |

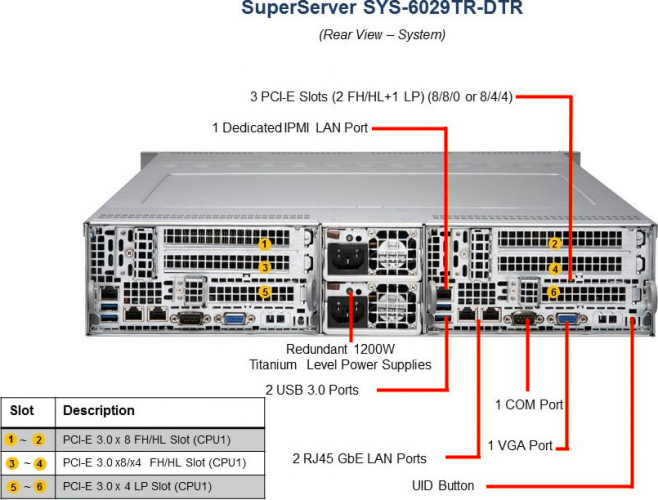

| Input / Output (per node) | |
|---|---|
| SATA | 6 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports total (rear) |
| VGA | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 rear) |
| Others | TPM 2.0 header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash ROM with UEFI |
| Management | |
|---|---|
| Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watchdog |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-827HD-R1K23BP3 |
| Dimensions and Weight | |
|---|---|
| Width | 17.25" (438mm) |
| Height | 3.47" (88mm) |
| Depth | 28.5" (724mm) |
| Weight | Gross Weight: 61.1 lbs (27.71kg) Net Weight: 42.1 lbs (19.1kg) |
| Available Colors | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button UID button |
| LEDs | Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| Expansion Slots (per node) | |
|---|---|
| PCI-Express | 2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4) |
| Drive Bays / Storage (per Node) | |
|---|---|
| Hot-swap | 6 Hot-swap 3.5" SATA3 HDD trays |
| Others | 2 SATA DOM 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL * M.2 and SuperDOM are for OS boot |
| System Cooling | |
|---|---|
| Fans | 4x 8cm heavy duty PWM fans with optimal fan speed control |
| Power Supply (76mm Width) | |
|---|---|
| 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) |
76 x 40 x 336 mm |
| Input | 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-6029TR-DTR | |
| System Building | SYS-6029TR-DTR can be configured individually | |
