SYS-5039C-T | Supermicro Intel Xeon/Core-i Tower Workstation
very few qty in stock
Advantages:
- Entry-Level Workstation
- Designed for CAD and 3D Modeling Applications
- NVIDIA® Quadro® Professional GPU support
Energy:
(TDP):
Thermal Dissipation:
(BTU):
- Manufacturer: Supermicro
-
Order number:
1246288
-
Manufacturer SKU:
SYS-5039C-T
Configuration not found? Please use our server request form!
SYS-5039C-T: Supermicro SuperWorkstation capable for Entry level with Nvidia Quadro... more

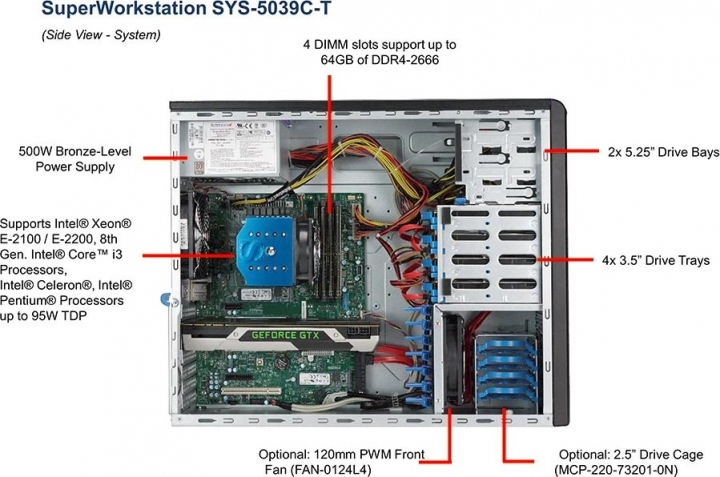

SYS-5039C-T Product Information
SYS-5039C-T: Supermicro SuperWorkstation capable for Entry level with Nvidia Quadro GPU support
Mainboard:
Supermicro X11SCA
CPU:
Single socket H4 (LGA 1151)
Intel Xeon E-2100/E-2200, Core-i, Pentium, Celeron (8th/9th Gen.)
Up to 8 cores, 95W TDP
RAM:
4 DIMM slots
up to 128GB DDR4-2666 ECC/non-ECC
LAN:
2 RJ45 GbE LAN ports
Expansion slots:
2 PCI-E 3.0 x16 slots (NA/16 or 8/8)
1 PCI-E 3.0 x4 slot
1 PCI-E 3.0 x1 slot
Storage:
4 fixed 3.5” drive bays
2 M.2 Interface: PCI-E 3.0 x4, form factor: 2260/ 2280/ 22110 (M-Key)
1 U.2 Interface: 1 PCI-E 3.0 x4 (shared with M.2#2)
Datasheet for Supermicro SYS-5039C-T
| Processor | |
|---|---|
| CPU | Single Socket H4 (LGA 1151),CPU TDP support up to 95W Support Intel® Xeon® E processors, 8th/9th Gen. Intel® Core™ i9/i7/i3 Processors, Intel® Celeron®, Intel® Pentium® |
| Core/Cache | Up to 8-Cores |
| System Memory | |
|---|---|
| Memory Capacity | 4 DIMM slots Up to 64GB ECC/non-ECC UDIMM Up to DDR4-2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C246 chipset |
| SATA | SATA3 (6Gbps) via Intel C246 controller RAID 0, 1, 5, 10 support |
| Network Controllers | Single LAN with Intel® I210-AT Single LAN with Intel® PHY I219LM |
| Input / Output | |
|---|---|
| SATA | 8 SATA3 (6Gbps) ports from Intel® C246 |
| LAN | 2 RJ45 Ethernet LAN ports |
| USB | 2 USB 3.1 Gen 2 Type A and Type C (rear) 4 USB 3.1 Gen 1 (2 rear + 2 front) 2 USB 2.0 (front) |
| Video | 1 HDMI (2.0a) port 1 DVI-D port, 1 DisplayPort 1.2 port |
| Audio | 7.1 HD Jacks |
| Serial Port / Header | 1 COM port (header) |
| TPM | 1 TPM 2.0 Header |
| Expansion Slots | |
|---|---|
| PCI-Express | 2 PCI-E 3.0 x16 running at NA/16 or 8/8 1 PCI-E 3.0 x4 slot 1 PCI-E 3.0 x1 slot 1 PCI 32bit 5V slot |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2260/ 2280/ 22110 M.2 Key: M-Key U.2 Interface: 1 PCI-E 3.0 x4 (Shared with M.2#2) |
| System BIOS | |
|---|---|
| BIOS Type | UEFI 256Mb |
| BIOS Features | ACPI 3.0 or later SMBIOS 2.7 or later SPI dual/quad speed support RTC wakeup |
| Chassis | |
|---|---|
| Form Factor | Mid-Tower |
| Model | CSE-732D4-500B |
| Dimensions and Weight | |
|---|---|
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Gross Weight | 35.5 lbs (16.1 kg) |
| Available Colors | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button |
| LEDs | Power LED Hard drive activity LED Network activity LED System Information LED |
| Ports | 2 USB 2.0 ports, 2 USB 3.1 Gen 1 ports 1 Line-out, 1 Mic-in |
| Drive Bays | |
|---|---|
| Internal | 4 Fixed 3.5” drive bays Optional 4 internal 2.5” drive bays Enterprise SATA HDD only recommended |
| Peripheral | 2 Standard 5.25" Peripheral drive bays 1 Internal 3.5" Fixed device bay |
| System Cooling | |
|---|---|
| Fans | 1x 12cm rear exhaust fan Optional 1x 12cm front cooling fan |
| Power Supply | |
|---|---|
| 668W AC Power supply | |
| AC Voltage | 100 - 240V, 50-60Hz |
| +5V | 20 Amp |
| +5V standby | 2 Amp |
| +12V | Max: 54A & Min: 0.2A (100Vac-240Vac) |
| -12V | 0.1 Amp |
| +3.3V | 15 Amp |
| Certification | Platinum Certified |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 4+2-Phase-switching voltage regulator |
| Fan | Low noise fan speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for 5x 4-pin fan connectors PECI |
| Operating Environment / Compliance | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
