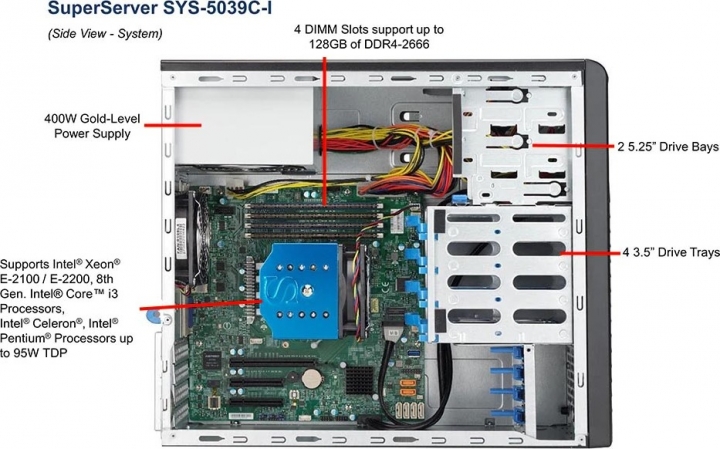

SYS-5039C-I | Supermicro Intel Xeon / Core-i Tower Workstation
long delivery time
Advantages:
- Entry-level server for small office home office (SOHO)
- Server message block (SMB)
- Remote access for mobile users
- Data sharing/Storage
- Centralized backup
Energy:
(TDP):
Thermal Dissipation:
(BTU):
- Manufacturer: Supermicro
-
Order number:
1248351
-
Manufacturer SKU:
SYS-5039C-I
Configuration not found? Please use our server request form!
Supermicro SYS-5039C-I : Versatile entry-level workstation for SOHO & SMB with centralized... more
SYS-5039C-I Product Information
Supermicro SYS-5039C-I: Versatile entry-level workstation for SOHO & SMB with centralized backup
Mainboard:
Supermicro X11SCL-F
CPU:
Single Socket H4 (LGA 1151)
Intel Xeon E-2100/E-2200, Core-i, Pentium, Celeron (8th/9th Gen.)
up to 6 cores, 95W TDP
RAM:
4x DIMM Slots, up to 128GB RAM DDR4-2666MHz
LAN:
2x RJ45 GbE LAN Ports
Expansion Slots:
1x PCI-E 3.0 x8 (in x16) slot
2x PCI-E 3.0 x4 (in x8) slots
Storage:
4x Fixed 3.5" Drive bays
M.2:
1 M.2 Interface: PCI-E 3.0 x4, form factor: 2260/ 2280/ 22110 (M-Key)
Peripheral Bays:
2x External 5.25" Peripheral bays
Datasheet for Supermicro SYS-5039C-I
| Processor | |
|---|---|
| CPU | Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP 8th/9th Generation Intel® Core i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. |
| Cores/Cache | 6 cores, 12 threads |
| Note | BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors |
| System Memory | |
|---|---|
| Memory Capacity | 4 DIMM slots Up to 128GB ECC UDIMM Up to DDR4-2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
| DIMM Sizes | 32GB, 16GB, 8GB |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C242 Chipset |
| SATA | SATA3 (6Gbps) via Intel C242 controller RAID 0, 1, 5, 10 support |
| Network Controllers | Dual LAN with Intel® I210-AT |
| Input / Output | |
|---|---|
| SATA | 6 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.2 Gen1 (front) 2 USB 3.2 Gen1 (rear) 2 USB 2.0 (rear) |
| Video | 1 VGA port |
| Serial Port / Header | 1 COM port |
| TPM | 1 TPM 2.0 Header |
| Expansion Slots | |
|---|---|
| PCI-Express | 1 PCI-E 3.0 x8 (in x16) slot 2 PCI-E 3.0 x4 (in x8) slots |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 22110/2280 M.2 Key: M-Key |
| System BIOS | |
|---|---|
| BIOS Type | UEFI 256Mb |
| BIOS Features | ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup PCI F/W 3.0 |
| Management | |
|---|---|
| Software | SuperDoctor® 5 Watch Dog Non-maskable Interrupt (NMI) |
| Chassis | |
|---|---|
| Form Factor | Mid-Tower |
| Model | CSE-731i-403B |
| Dimensions and Weight | |
|---|---|
| Height | 14.25" (362mm) |
| Width | 7.25" (184mm) |
| Depth | 16.75" (425mm) |
| Gross Weight | 35.5 lbs (16.1 kg) |
| Available Colors | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button |
| LEDs | Power LED Hard drive activity LED Network activity LED System Information LED |
| Ports | 2 USB 3.1 Gen 1 ports |
| Drive Bays | |
|---|---|
| Internal | 4 Fixed 3.5" Drive bays |
| Peripheral | 2 External 5.25" Peripheral bays |
| System Cooling | |
|---|---|
| Fans | 1x 9cm (rear) PWM Fan w/ tool-less design Optional 1x 8cm (front) cooling Fan |
| Power Supply | |
|---|---|
| Total Output Power and Input | 400W with Input 100 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| -12V | Max: 0.3A |
| +12V | 18A |
| +5V | Max: 22A |
| +3.3V | Max: 24A |
| +5V standby | Max: 3A |
| Certification | Gold Certified |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 4 CPU switch phase voltage regulator |
| Fan | Low noise fan speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for five 4-pin fan connectors Platform Environmental Control Interface (PECI) |
| Operating Environment / Compliance | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 20% to 95% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-5039C-I | |
| System Building | SYS-5039C-I can be configured individually | |
