Supermicro SYS-611C-TN4R | Dual Xeon 1U CloudDC Rack Server
long delivery time
Advantages:
- Web Server, Firewall Application
- Cloud Computing, Compact Server
- CDN, Edge Nodes
- Data Center Optimized, Value IaaS
- DNS & Gateway Servers, Firewall Application
Price on request
- Manufacturer: Supermicro
-
Order number:
1255408
-
Manufacturer SKU:
SYS-611C-TN4R
Configuration not found? Please use our server request form!
Supermicro SYS-611C-TN4R: CloudDC Scalable SuperServer Solution with 4 Hot-Swap 3.5" Hybrid... more
SYS-611C-TN4R Product Information

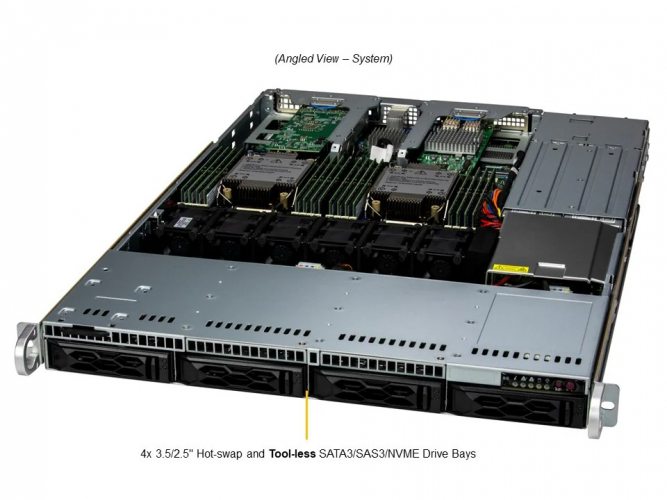

Supermicro SYS-611C-TN4R: CloudDC Scalable SuperServer Solution with 4 Hot-Swap 3.5" Hybrid drive bays and 2 PCIe 5.0 x16 slots + 2 AIOM in 1U
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro X13DDW-A
CPU:
Dual Socket E (LGA-4677), 5th Gen Intel® Xeon® Scalable processors
4th Gen Intel® Xeon® Scalable processors
36C/72T, 82.5MB Cache per CPU
GPU:
Up to 2 single-width GPUs, NVIDIA PCIe: L4, A2
RAM:
16x DIMM slots
4TB 5600MT/s ECC DDR5 RDIMM
LAN:
1x 1GbE RJ45 dedicated BMC LAN port
2 AIOM networking slot from OCP 3.0
Expansion Slots:
2x PCIe 5.0 x16 full-height, half-length slots
2x PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
M.2:
2x M.2 slots, PCIe 5.0 x4 NVMe, Form factor 2280, M-Key
Storage:
4x 3.5" hot-swap U.2 NVMe/SATA/SAS drive bays
| SKU Overview | ||
|---|---|---|
| SYS-611C-TN4R | Dual Intel Xeon Scalable 5th Gen/4th Gen CPU, 4x 3.5" hot-swap drive bays, 2x PCIe (FHHL), 2x AIOM, 2x 860W redundant PSUs | |
Datasheet for Supermicro SYS-611C-TN4R
| Processor/Chipset | |
|---|---|
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | 36C/72T; 82.5MB Cache per CPU |
| Note | 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. |
| GPU | |
|---|---|
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPU |
NVIDIA PCIe: L4, A2 |
| System Memory | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| NVMe | NVMe; RAID 0/1/5/10 support(VROC HW key required) |
| Chipset | Intel® C741 |
| Network Connectivity | Via AIOM |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
| TPM | 1 TPM header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | ACPI/APM Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-LA15TS-R0AWNP2 |
| Dimensions and Weight | |
|---|---|
| Height | 4.3cm (43mm) |
| Width | 43.6cm (437mm) |
| Depth | 65cm (650 mm) |
| Package | 19.81cm (H) x 60.45cm (W) x 87.88cm (D) |
| Weight | Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg) |
| Available Color | Black front & Silver body |
| Front Panel | |
|---|---|
| Buttons | Power On/Off Reset button Unit Identifier (UID) |
| LEDs | Drive activity Network activity Power status Universal Information |
| Expansion Slots | |
|---|---|
| PCI-Express | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Storage | |
|---|---|
| Drive Bays | Default: Total 4 bays 4 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays Option A: Total 4 bays 4 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays *NVMe/SAS/SATA support may require additional storage controller and/or cables |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID) |
| Peripheral Bays | 2 2.5" peripheral bays (optional) |
| System Cooling | |
|---|---|
| Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shrouds |
| Power Supply | |
|---|---|
| 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Dimension (W x H x L) |
54.5 x 40.25 x 322 mm |
| AC Input | 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz |
| +12V | Max: 66.67A / Min: 0A (100Vac-127Vac) Max: 71.67A / Min: 0A (200Vac-240Vac) Max: 71.67A / Min: 0A (Vdc-240Vdc) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-611C-TN4R | |
| System Building | SYS-611C-TN4R configured by Supermicro as Complete System | |
