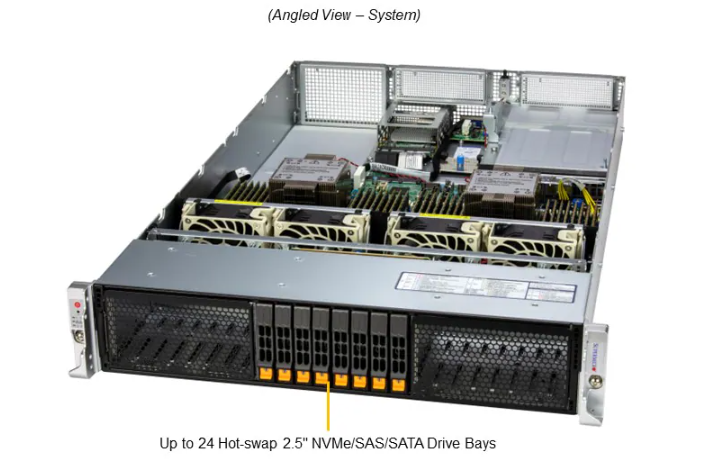

Supermicro SYS-222H-TN | Dual Xeon 2U Hyper Server
long delivery time
Advantages:
- Virtualization
- High Performance Computing
- Enterprise Server
- Software-defined Storage
- Cloud Computing
Price on request
- Manufacturer: Supermicro
-
Order number:
1254791
-
Manufacturer SKU:
SYS-222H-TN
Configuration not found? Please use our server request form!
Supermicro SYS-222H-TN: Flagship Power and Flexibility Rackmount Server Solution with 8 Hot-Swap... more
SYS-222H-TN Product Information
Supermicro SYS-222H-TN: Flagship Power and Flexibility Rackmount Server Solution with 8 Hot-Swap 2.5" and PCIe 5.0 Ready in 2U
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro X14DBM-SP
CPU:
Dual Socket E2 (LGA-4710), Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Supports up to 144C/144T for E-Cores or 86C/172T for P-Cores; 350W TDP CPUs (Liquid and Air-Cooled)
RAM:
32x DIMM slots
Up to 8TB RAM DDR5-5200MT/s RDIMM
LAN:
Flexible networking options, 2x AIOM networking slot (OCP NIC 3.0 compatible)
1x RJ45 1GbE dedicated BMC LAN port
Expansion Slots:
4x PCIe 5.0 x16 FH/10.5"L double-width slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
1x PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
M.2:
2x M.2 NVMe PCIe 5.0 x2, Form factor 2280/22110, M-Key
Storage:
8x 2.5" hot-swap U.2/SATA/SAS drive bays
| SKU Overview | ||
|---|---|---|
| SYS-222H-TN | Dual Intel Xeon 6700/6500 Series CPU with P/E-Cores, 8x 2.5" hot-swap drive bays, 6x PCIe (4x FH, 2x AIOM), 2x 1200W redundant PSUs | |
Datasheet for Supermicro SYS-222H-TN
| Processor/Chipset | |
|---|---|
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU | |
|---|---|
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs |
| System Memory | |
|---|---|
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) 2 USB 3.0 ports(Header) |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power Configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-HS219-R000NP |
| Dimensions and Weight | |
|---|---|
| Height | 8.8cm (88 mm) |
| Width | 43.84cm (438.4 mm) |
| Depth | 75.52cm (755.2 mm) |
| Package | 25.70cm (H) x 60.50cm (W) x 94.69cm (D) |
| Weight | Gross Weight: 66 lbs (30 kg) Net Weight: 40 lbs (18.2 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| LEDs | HDD activity LAN1 activity LAN2 acticity Power Fail Power status System information (overheat/UID) |
| Buttons | Power On/Off button UID button |
| Expansion Slots | |
|---|---|
| PCI-Express (PCIe) Configuration | Option A* 4 PCIe 5.0 x16 FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) |
| CXL Support | Up to 4 CXL 2.0 x16/x8 devices |
| Drive Bays / Storage | |
|---|---|
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
|---|---|
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
|---|---|
| 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Dimension (W x H x L) |
73.5 x 40 x 265 mm |
| Input | 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3.5A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-222H-TN | |
| System Building | SYS-222H-TN configured by Supermicro as Complete System | |
