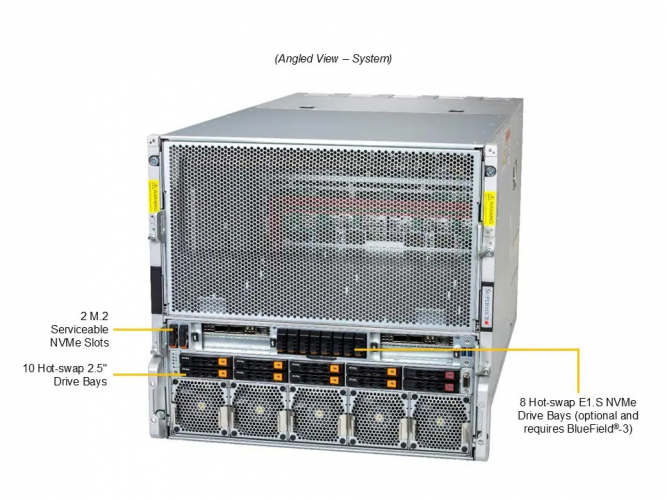

Supermicro AS-A126GS-TNBR | Dual AMD EPYC 10U GPU A+ Server
long delivery time
Advantages:
- High Performance Computing
- Industrial Automation, Retail
- Conversational AI
- Drug Discovery
- Finance & Economics
- AI/Deep Learning Training
- Healthcare
- Business Intelligence & Analytics
- Climate and Weather Modeling
Price on request
- Manufacturer: Supermicro
-
Order number:
1254783
-
Manufacturer SKU:
AS-A126GS-TNBR
Configuration not found? Please use our server request form!
Supermicro AS-A126GS-TNBR: Supermicro GPU Server with 8x NVIDIA HGX B200
... more
AS-A126GS-TNBR Product Information
Supermicro AS-A126GS-TNBR: Supermicro GPU Server with 8x NVIDIA HGX B200
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro H14DSG-OD
GPU:
8 onboard SXM GPU accelerator cards (Air-cooled)
CPU:
Dual Socket SP5, AMD EPYC 9005/9004 Series Processors
Supports up to 384 Cores/768 Threads, up to 500W CPU TDP
RAM:
24x DIMM slots
Up to 6TB RAM DDR5-6400MT/s ECC RDIMM
LAN:
2x 10GbE RJ45 with Intel® X710
1x 1GbE RJ45 dedicated BMC LAN port
Expansion Slots:
8x PCIe 5.0 x16 LP slots
2x PCIe 5.0 x16 FHHL slots
M.2:
2x M.2 NVMe slots, Form factor 22110, M-key
Storage:
8x 2.5" front hot-swap PCIe 5.0 x4 NVMe drive bays
2x 2.5" front hot-swap SATA drive bays
| SKU Overview | ||
|---|---|---|
| AS-A126GS-TNBR | Dual AMD EPYC 9005/9004 Series CPU, 10x 2.5" hot-swap drive bays, 10x PCIe (8x LP, 2x FHHL), 6x 5250W redundant PSUs | |
Datasheet for Supermicro AS-A126GS-TNBR
| Processor | |
|---|---|
| CPU | Dual Socket SP5, AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
|---|---|
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
|---|---|
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 9TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions and Weight | |
|---|---|
| Height | 43.88cm (438.8 mm) |
| Width | 44.9cm (449 mm) |
| Depth | 84.32cm (843.28 mm) |
| Package | 63.5cm (H) x 125.47cm (W) x 69.34cm (D) |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| LEDs | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off button UID button |
| Expansion Slots | |
|---|---|
| PCI-Express (PCIe) Configuration | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| M.2 | 2 M.2 NVMe slots (M-key 22110(default)) |
| Drive Bays / Storage | |
|---|---|
| Drive Bays Configuration | Default: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5" SATA drive bays Option A: Total 8 bays 8 front hot-swap E1.S NVMe* drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
|---|---|
| Fans | 19x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
|---|---|
| 6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies | |
| Dimension (W x H x L) |
106.5 x 82.1 x 245.3 mm |
| Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium (certification pending) Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-A126GS-TNBR | |
| System Building | AS-A126GS-TNBR configured by Supermicro as Complete System | |
