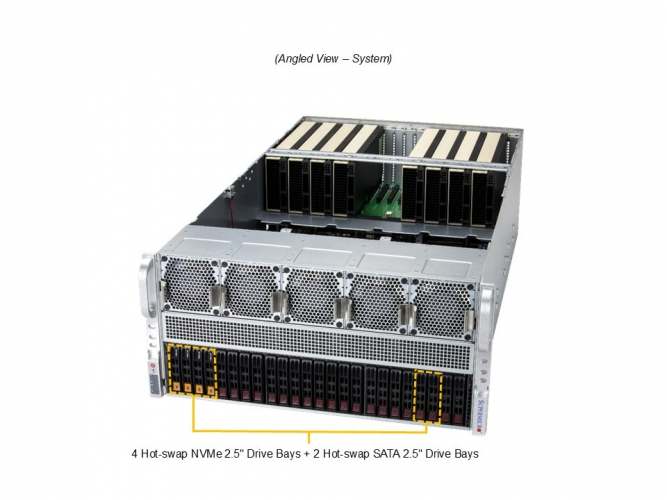

Supermicro AS-5126GS-TNRT | Dual AMD EPYC 5U GPU A+ Server
long delivery time
Advantages:
- AI / Deep Learning
- Visualization / Simulation
- Multimedia/Digital Content creation
- 3D Rendering Farm
- High Performance Computing
Price on request
- Manufacturer: Supermicro
-
Order number:
1256024
-
Manufacturer SKU:
AS-5126GS-TNRT
Configuration not found? Please use our server request form!
Supermicro AS-5126GS-TNRT: Enterprise-Class AMD EPYC 9005 Dual-Processor GPU Server... more
AS-5126GS-TNRT Product Information
Supermicro AS-5126GS-TNRT: Enterprise-Class AMD EPYC 9005 Dual-Processor GPU Server supportes up to 8 nVidia PCIe GPUs in 5U - Blackwell ready
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro H14DSG-O-CPU
CPU:
Dual Socket SP5, AMD EPYC 9005/9004 Series Processors
Supports up to 192 Cores/384 Threads, up to 500W CPU TDP
RAM:
24x DIMM slots
Up to 6TB RAM DDR5-6400MHz ECC RDIMM
LAN:
2x 10GbE RJ45 LAN ports
1x 1GbE RJ45 dedicated BMC LAN port
Expansion Slots:
9x PCIe 5.0 x16 FHFL double-width slots
Storage:
6x 2.5" Hot-Swap drive bays (2x SATA, 4x U.2 NVMe)
M.2:
1x M.2 PCIe 3.0 x4 NVMe slot, Form Factor 2280/22110, M-key
| SKU Overview | ||
|---|---|---|
| AS-5126GS-TNRT | Dual AMD EPYC 9005/9004 Series CPU, 6x 2.5" Hot-Swap drive bays, 9x PCIe (FHFL), 2x 10GbE LAN, 6x 2700W redundant PSUs | |
Datasheet for Supermicro AS-5126GS-TNRT
| Processor | |
|---|---|
| CPU | Dual Socket SP5, AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 192C/384T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
|---|---|
| Max GPU Count | Up to 8 double-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| Certification | nVidia Certified |
| System Memory | |
|---|---|
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
|---|---|
| SATA | SATA (6Gbps) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports(rear) |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 5U Rackmount |
| Model | CSE-528G2TS-R000NDP |
| Dimensions and Weight | |
|---|---|
| Height | 22.25cm (222.5 mm) |
| Width | 43.8cm (438 mm) |
| Depth | 78.61cm (786.1 mm) |
| Package | 43.99cm (H) x 71.98cm (W) x 107.97cm (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots | |
|---|---|
| PCI-Express (PCIe) Configuration | Default 9 PCIe 5.0 x16 FHFL double-width slots Option A 10 PCIe 5.0 x16 FHFL double-width slots |
| Drive Bays / Storage | |
|---|---|
| Drive Bays Configuration | Default: Total 6 bays 2 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe drive bays Option A: Total 2 bays 2 front hot-swap 2.5" SATA drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) |
| System Cooling | |
|---|---|
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
| Power Supply | |
|---|---|
| 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies | |
| Dimension (W x H x L) |
73.5 x 40 x 203 mm |
| Input | 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 3.5A / Min: 0A Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Environmental / Recycling | ||
|---|---|---|
| Recycle | Return Server-End of Life Product | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-5126GS-TNRT | |
| System Building | AS-5126GS-TNRT configured by Supermicro as Complete System | |
