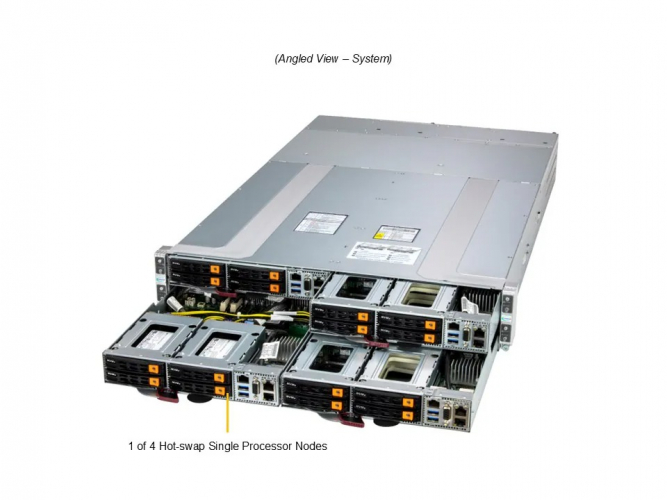

Supermicro AS-2116GT-HNTF | Single EPYC 4-Node 2U Twin Server
long delivery time
Advantages:
- High Performance Computing (HPC)
- MEC (Multi-Access Edge Computing)
- EDA (Electric Design Automation)
- Cloud Gaming
- Multi-Purpose CDN
- Telco Edge Cloud
Price on request
- Manufacturer: Supermicro
-
Order number:
1254770
-
Manufacturer SKU:
AS-2116GT-HNTF
Configuration not found? Please use our server request form!
Supermicro AS-2116GT-HNTF: Compute Excellence and Multi-Node GrandTwin Server with up to 4... more
AS-2116GT-HNTF Product Information
Supermicro AS-2116GT-HNTF: Compute Excellence and Multi-Node GrandTwin Server with up to 4 Hot-Swap 2.5" Drive Bays and Front I/O
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
— per Node
Mainboard:
Supermicro H14SST-G
CPU:
Single Socket SP5, AMD EPYC™ 9005/9004 Series Processors
192C/384T; 400W TDP CPUs
RAM:
16x DIMM slots
Up to 4TB RAM DDR5-4400MT/s ECC RDIMM
LAN:
1x 1GbE RJ45 dedicated BMC LAN port
Flexible networking option, 1 AIOM networking slot from OCP 3.0
Expansion Slots:
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
M.2:
2x M.2 NVMe/SATA slots, Form factor 2280/22110, M-key
Storage:
4x 2.5 hot-swap U.2 NVMe/SATA drive bays
| SKU Overview | ||
|---|---|---|
| AS-2116GT-HNTF | Single AMD EPYC 9005/9004 Series CPU, 4x 2.5" hot-swap drive bays, 1x PCIe (AIOM), 2x 2200W redundant PSUs | |
Datasheet for Supermicro AS-2116GT-HNTF
| Processor (per Node) | |
|---|---|
| CPU | Single Socket SP5 AMD EPYC™ 9005/9004 Series Processors |
| Core Count | 192C/384T; 384MB Cache |
| Note | 400W TDP CPUs |
| System Memory (per Node) | |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 2TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (2DPC): Up to 4TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1 V |
| On-Board Devices (per Node) | |
|---|---|
| Chipset | System on Chip |
| Network Connectivity | Via IO Module |
| Input / Output (per Node) | |
|---|---|
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports |
| Video | 1 VGA port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Security | |
|---|---|
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
|---|---|
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-GT214BF-R2K21BP |
| Dimensions and Weight | |
|---|---|
| Height | 8.8cm (88 mm) |
| Width | 44.9cm (449 mm) |
| Depth | 17.12cm (711.2 mm) |
| Package | 24.79cm (H) x 62.61cm (W) x 115.01cm (D) |
| Weight | Gross Weight: 88 lbs (39.9 kg) Net Weight: 68 lbs (30.8 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| LEDs | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |
|---|---|
| PCI-Express (PCIe) Configuration | Option A 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Storage (per Node) | |
|---|---|
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 2.5" NVMe/SATA drive bays |
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
| System Cooling | |
|---|---|
| Fans | 2x 17.6K RPM Heavy Duty 8cm Fans |
| Air Shroud | 1 per node Air Shroud |
| Power Supply | |
|---|---|
| 2x 2200W Redundant Titanium Level (96%) power supplies | |
| Dimension (W x H x L) |
106.5 x 84 x 245.3 mm |
| Input | 100-127Vdc (1200W for the Rest of the World) 1200W: 100-127Vac / 50-60Hz 2090W: 180-220Vac / 50-60Hz (For UL/cUL Only) 200-220Vdc (1800W for the Rest of the World) 200-220Vdc (2090W for North America - UL & cUL) 1800W: 200-220Vac / 50-60Hz 220-230Vdc (1980W for the Rest of the World) 1980W: 220-230Vac / 50-60Hz 220-240Vdc (2200W for North America - UL & cUL) 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 230-240Vdc (2090W for the Rest of the World) 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB) |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only) Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.3A / Min: 0A (220Vac-240Vac) Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) Max: 174.17A (230Vac-240Vac) |
| 12V SB | Max: 2A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
|
| Environmental / Recycling | ||
|---|---|---|
| Recycle | Return Server-End of Life Product | |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-2116GT-HNTF | |
| System Building | AS-2116GT-HNTF configured by Supermicro as Complete System | |
