Supermicro SSG-640SP-DE2CR90 | 90 Bay Dual Node Storage Server
long delivery time
Advantages:
- Big Data & Analytics, Data Lake
- HPC and AI/ML Workloads
- Telco & Cloud Service Providers
- Financial Services & Healthcare Image Archives
- Content Repositories
- Government Data Protection
special highlight
2 Node storage server with 90x 3.5" drive bays
Coming soon
- Manufacturer: Supermicro
-
Order number:
1250082
-
Manufacturer SKU:
SSG-640SP-DE2CR90
Configuration not found? Please use our server request form!
Supermicro SSG-640SP-DE2CR90: 4U Storage Server with 2 Hot-pluggable Nodes up to 72 Cores,... more
SSG-640SP-DE2CR90 Product Information
Supermicro SSG-640SP-DE2CR90: 4U Storage Server with 2 Hot-pluggable Nodes up to 72 Cores, 90x 3.5" drivebays and 3x PCI-E 4.0 x16 HHHL PCI-E slots
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Per Node
Mainboard:
Supermicro X12DSC-6
CPU:
Dual Socket P+ (LG-4189), 3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-250W
Up to 36 Cores and 72 Threads per CPU
RAM:
16x DIMM slots
Up to 2TB: PMem
Up to 4TB: 16x 256 GB DRAM
3200MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series
Network Connectivity:
2x 10GbE BaseT with X550
LAN:
1x RJ45 Dedicated IPMI LAN port
2x RJ-45 10Gbase-T ports
Expansion slots:
3x PCI-E 4.0 x16 LP
M.2:

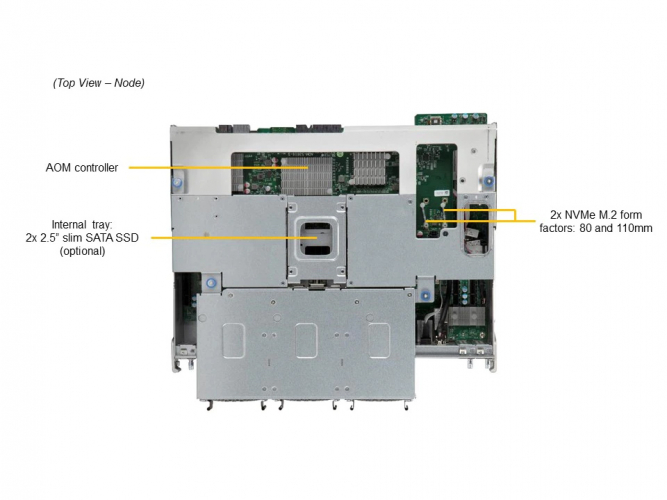

2x M.2 NVMe
Storage:
90x 3.5" hot-swap SATA3/SAS3 drive bays
4x 2.5" 7mm drive bays
Datasheet for Supermicro SSG-640SP-DE2CR90
| Processor/Chipset (per Node) | |
|---|---|
| CPU | Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 120-250W |
| System Memory | |
|---|---|
| Memory Capacity | 16 DIMM slots UP to 2TB: PMem UP to 4TB: 16x 256 GB DRAM |
| Memory Type | 3200MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output | |
|---|---|
| LAN | 1x RJ45 Dedicated IPMI LAN port 2x RJ-45 10Gbase-T ports |
| USB | 2x USB 3.0 ports (2 Rear_USB) |
| Video | 1x VGA port |
| Serial Port | 1x COM Port (1 rear) |
| DOM | 2x SuperDOM (Disk on Module) port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
|---|---|
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSV-947HTS-R2K63P |
| Dimensions and Weight | |
|---|---|
| Height | 7" |
| Width | 17.6" |
| Depth | 42.1" |
| Package | 29.92" (H) x 35.82" (W) x 53.15" (D) |
| Weight | Net Weight: 150 lbs (68.04 kg) Gross Weight: 240 lbs (108.86 kg) |
| Available Color | Silver |
| Expansion Slots | |
|---|---|
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP |
| Drive Bays | |
|---|---|
| Drive Bays | 90x 3.5" hot-swap SATA3/SAS3 drive bays 4x 2.5" 7mm drive bays |
| M.2 | 2 M.2 NVMe |
| System Cooling | |
|---|---|
| Fans | 6x Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 2600W Titanium Redundant Power Supply | |
| Dimension (W x H x L) |
73.5 x 40 x 265 mm |
| AC Input | 100-127Vac / 50-60Hz 200-240Vac / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 216A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SSG-640SP-DE2CR90 | |
| System Building | SSG-640SP-DE2CR90 configured by Supermicro as Complete System | |
