SSG-640P-E1CR36H | Supermicro Dual Xeon 4U Storage Server
long delivery time
Advantages:
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
Energy:
(TDP):
Thermal Dissipation:
(BTU):
- Manufacturer: Supermicro
-
Order number:
1250073
-
Manufacturer SKU:
SSG-640P-E1CR36H
Configuration not found? Please use our server request form!
Supermicro SSG-640P-E1CR36H: 4U versatile storage server with 36x 3.5" bays and integrated RAID... more
SSG-640P-E1CR36H Product Information

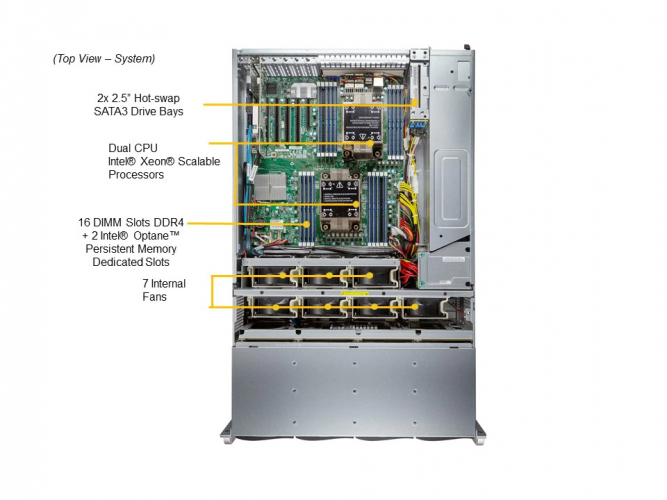

Supermicro SSG-640P-E1CR36H: 4U versatile storage server with 36x 3.5" bays and integrated RAID controller
Mainboard:
Supermicro X12DPi-NT6
CPU:
Dual Socket P+ (LG-4189), 3rd Gen Intel® Xeon® Scalable processors
Up to 72 Cores pro Node, support up to 270W TDP
RAM:
16x DIMM + 2x DCPMM slots, up to 18TB: PMem / up to 4TB: 16x 256 GB DRAM DDR4-3200MHz
Intel® Optane™ persistent memory 200 series
LAN:
2x RJ45 10GbE LAN ports
1x RJ45 dedicated IPMI LAN port
Expansion Slots:
4x PCI-E 4.0 x16 LP slots
2x PCI-E 4.0 x8 LP slots
M.2:
1x M.2 SATA/NVMe, Form factor 2280/22110
Storage:
36x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5 NVMe hybrid)
Datasheet for Supermicro SSG-640P-E1CR36H
| Processor/Chipset | |
|---|---|
| CPU | Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 120-270W |
| System Memory | |
|---|---|
| Memory Capacity | Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
|---|---|
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 4 USB 3.0 ports (4 Rear_USB) |
| Video | 1 VGA port |
| Serial Port | 1 COM port (1 rear) |
| DOM | 2 SuperDOM (Disk on Module) port |
| System BIOS | |
|---|---|
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management | |
|---|---|
| Software | IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
|---|---|
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmount |
| Model | CSE-847BTS-R1K68LPBP4 |
| Dimensions and Weight | |
|---|---|
| Height | 7" |
| Width | 17.2" |
| Depth | 27.5" |
| Package | 15" (H) x 27" (W) x 39" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 102.5 lbs (46.4 kg) |
| Available Color | Silver |
| Front Panel | |
|---|---|
| Buttons | Power On/Off |
| LEDs | HDD activity Network activity Power status System information (overheat/UID) |
| Expansion Slots | |
|---|---|
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x8 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP |
| Note | PCI-E slot 1/2 is occupied by the JBOD Expansion/Storage Controller |
| Drive Bays | |
|---|---|
| Drive Bays | 36x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid) |
| M.2 | 1 M.2 NVMe |
| System Cooling | |
|---|---|
| Fans | 7 Heavy Duty 8cm Fans |
| Power Supply | |
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Dimension (W x H x L) |
76.5 x 40 x 360 mm |
| AC Input | 100-140Vac / 7A-10A / 50-60Hz 180-240Vac / 8A-11A / 50-60Hz |
| +12V | Max: 66A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 1A / Min: 0A |
| Output Type | 27 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SSG-640P-E1CR36H | |
| System Building | SSG-640P-E1CR36H can be configured individually | |
