XJ1-41081-05 | AIC 108-Bay JBOD Storage Enclosure, Dual SAS 12G

Preview: AIC J4108-01-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4108-01-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4108-01-35X 4U JBOD SAS Storage Expansion
Preview: AIC J4108-01-35X 4U JBOD SAS Storage Expansion
AIC J4108-01-35X 4U JBOD SAS Storage Expansion
AIC J4108-01-35X 4U JBOD SAS Storage Expansion
AIC J4108-01-35X 4U JBOD SAS Storage Expansion
AIC J4108-01-35X 4U JBOD SAS Storage Expansion

very few qty in stock

Advantages:

  • Intelligent Enclosure Management
  • Individual drive power management
  • Hot swap design for easy maintenance and management
  • Enclosure Cable Management Kit
  • Tool-less drive trays
€6,670.00 *

Prices plus VAT plus shipping costs

Do you need help?
Your contact person:
Donna Holz
Sales
+49 (0)4181 235770
Donna Holz
request quotation
  • Manufacturer: AIC
  • Order number:

    1255288

  • Manufacturer SKU:

    XJ1-41081-05

Configuration not found? Please use our server request form!

Description
AIC XJ1-41081-05: Massive Scale 4U JBOD Enclosure with 108 Bays, dual Expander and... more
Close menu

XJ1-41081-05 Product Information

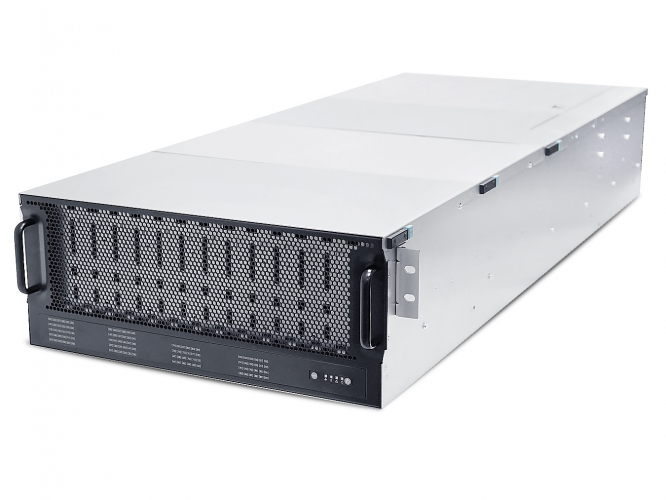

AIC XJ1-41081-05: Massive Scale 4U JBOD Enclosure with 108 Bays, dual Expander and Redundant Cold Data Infrastructure



4U JBOD Storage Enclosure

108x 3.5" Hot-Swap drive bays

Hot swap JBOD with dual SAS 12G expander controller

Dual BMC

Tool-less HDD tray

2x 2000W Hot-Swap Redundant Power Supplies 80+ Titanium (C14 inlet)

Tool-less Rail Kit

Datasheet
Close menu

Datasheet for AIC XJ1-41081-05

General
Number of Expander Dual
Expander Chip: LSI SAS35x48
Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface: 12Gb and 6Gb SAS
Form Factor: 3.5”
Administration / Management
Admin/Firmware Upgrade: In-band & Serial port interface
IEM port (optional)
LED Indicators, Audible Alarm: Yes
Hot swap & Redundancy
Drive Bays: 108
Cooling: 8 x 60x56mm hot swap fans
1 x 40x56mm fan per expander module
Power Supply: 2000W 1+1 hot swap redundant 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules:  Dual SAS topology (Optional)
Electrical & Environment
Universal A/C Input: 200-240Vac , 50/60Hz, 10A (2000W)
Operating Environment:
• Temperature: 0ºC to 35ºC
• Relative humidity: 20% to 80%
Non-Operating Environment:
• Temperature: -20ºC to 60ºC
• Relative humidity: 10% to 90%
Physical Specification
Dimensions (W x D x H):
• mm: 434 x 1050 x 176
 434 x 1273 x 176 (with CMA)
• inches: 17 x 41 x 7
17 x 41 x 7 (with CMA)
Gross Weight (w/ PSU, w/o Rail & Disks):
• kgs: 66.97
• lbs: 147.6
Packaging Dimension (W x D x H)
• mm: 640 x 1380 x 526
• inches: 25.2 x 54.3 x 20.7
Mounting:
Standard: 41" Slide Rail
Option: Cable Management Kit
Order Information
Manufacturer SKU XJ1-41081-05
System Building XJ1-41081-05 configured as a disk expansion chassis; drive population customisable.
