Dell XE9680 210-BKSR | Dual Intel Xeon 6U PowerEdge AI Server

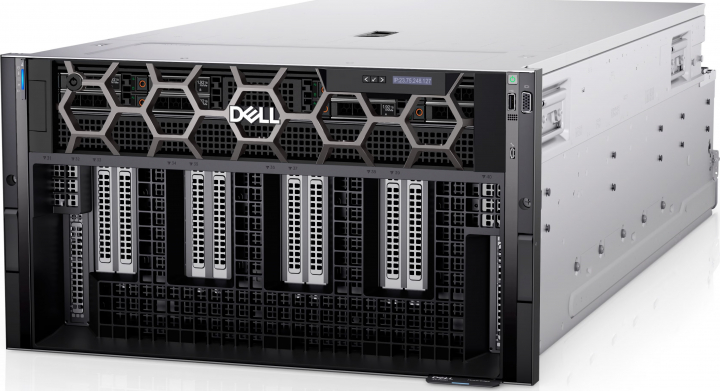

Dell PowerEdge XE9680 210-BKSR AI HPC Server
Dell PowerEdge XE9680 210-BKSR AI HPC Server
Dell PowerEdge XE9680 210-BKSR AI HPC Server
Dell PowerEdge XE9680 210-BKSR AI HPC Server
long delivery time

Advantages:

  • GPU Density
  • AI Training
  • HPC applications
  • Virtualisation
  • Large language Models
  • Molecular Dynamics and Genome Sequencing
Price on request
Do you need help?
Your contact person:
Gunnar Dietrich
Sales
Gunnar Dietrich
  • Dell
  • 1254900

  • 210-BKSR

Configuration not found? Please use our server request form!

Dell PowerEdge XE9680 (210-BKSR): Unleashing Extreme Acceleration and AI/HPC Rack... more

210-BKSR Product Information

Dell PowerEdge XE9680 (210-BKSR): Unleashing Extreme Acceleration and AI/HPC Rack Server Solution with 2-Socket and 8-way GPU in 6U



CPU:

Dual 5th/4th Gen Intel Xeon Scalable Processors

Up to 64 Core for 5th Gen and 56 Core for 4th Gen, supports up to 350W cTDP



GPU:

Up to 8x PCIe Gen5/Gen4 x16, supports NVIDIA HGX A100, SXM4 or NVIDIA HGX H100/H200/H20, SXM5 or AMD INSTINCT MI300X OAM 2.0 or Intel Gaudi3 OAM 2.0



RAM:

32x DIMM slots, up to 4TB RAM DDR5-5600MT/s RDIMM ECC



LAN:

1x Dedicated iDRAC9 management Ethernet port

1x iDRAC Direct Micro-AB USB port (for local management access)



Expansion Slots:

10x PCIe Gen5 x16 full-height, half-length slots (8 PCIe slots with Intel Gaudi 3)



M.2:

2x M.2 NVMe SSDs via NVMe BOSS-N1 (HWRAID1)



Storage:

8x 2.5" U.2 NVMe/SAS/SATA SSD drive bays or

16x E3.S NVMe direct drives



At Happyware, your gateway to enterprise-grade AI computing starts here. Equip your data centre with the Dell PowerEdge XE9680 and unleash the power of 8-way GPU acceleration for your most demanding deep learning workloads. Connect with us today to configure your system with precision, and elevate your AI strategy with a partner who understands performance without compromise.

SKU Overview
XE9680 (210-BKSR) Dual 5th/4th Gen Intel Xeon Scalable CPU, 8x 2.5" U.2 NVMe/SATA/SAS or 16x E3.S NVMe SSD drive bays, 10x PCIe Gen5 (FHHL), 6x 2800W redundant PSUs

Datasheet for Dell XE9680 (210-BKSR)

Processor
CPU Dual 5th Generation Intel® Xeon® Scalable processors
Dual 4th Generation Intel® Xeon® Scalable processors
Core Count ​​​​​​64 cores per processor for 5th Gen Intel
56 cores per processor for 4th Gen Intel
Chipset
Intel® C741 chipset
GPU Accelerators
Max GPU Count 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or,
8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or,
8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity,
8 Intel Gaudi3 128GB 900W OAM accelerator with embedded RoCE ports for ethernet connectivity
System Memory
Memory 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 5600 MT/s on the 5th Generation Intel® Xeon® Scalable processors
Up to 4800 MT/s on the 4th Generation Intel® Xeon® Scalable processors
Storage
Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
Up to 16 x E3.S NVMe direct drives max 122.88 TB
Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.
Storage Controllers
Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Internal controllers PERC H965i (Not supported with Intel Gaudi3)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Tools Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations BMC Truesight
OpenManage Integration with ServiceNow
Power Supplies
6x 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Fans Up to 6 High performance (HPR) gold grade fans installed in mid tray
Up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi3)
All are hot swap fans
Embedded OSFP
6 x 800 Gb (available only with Intel Gaudi3)
Ports
Network Options 1 x OCP 3.0 (optional)
2 x 1GbE LOM (optional)
Front Ports 1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports 1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x RJ45 iDRAC9 ethernet port
Slots
PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3)
Bezel Optional LCD bezel or security bezel
Form Factor
6U rack server
Embedded Management
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module (iSM)
OpenManage Software
• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Service plugin • OpenManage Power Manager plugin • OpenManage Update Manager plugin
Bezel
Optional LCD bezel or security bezel
OpenManage Integrations
• BMC Truesight • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers
Dimensions & Weight
Height 263.2 mm (10.36 inches)
Width 482.0 mm (18.97 inches)
Depth 1008.77 mm (39.71 inches) with bezel
995 mm (39.17 inches) without bezel
Weight 114.05 kg (251.44 pounds)
Operating System
Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMWare ESXi
Order Information
Manufacturer SKU XE9680 (210-BKSR)
System Building XE9680 (210-BKSR) can be configured individually
