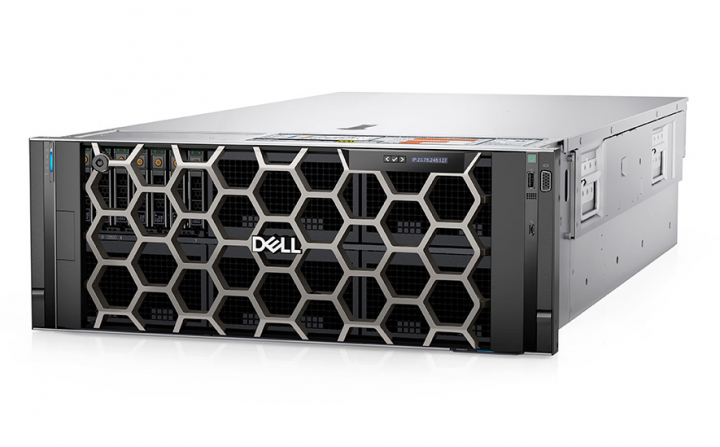

Dell R960 210-BGPS | 4-Socket Intel Xeon 4U PowerEdge Server
long delivery time
Advantages:
- High-Performance Server
- Large in-memory databases
- SAP HANA, SQL, Oracle
- Data analytics
- AI and virtualization, VDI
Price on request
- Manufacturer: Dell
-
Order number:
1254908
-
Manufacturer SKU:
210-BGPS
Configuration not found? Please use our server request form!
Dell PowerEdge R960 (210-BGPS): GPU-enabled quad-CPU server for in-memory databases, including... more
210-BGPS Product Information
Dell PowerEdge R960 (210-BGPS): GPU-enabled quad-CPU server for in-memory databases, including SAP HANA, SQL, Oracle
CPU:
Quad 4th Gen Intel Xeon Scalable Processors
Up to 60 cores per processor, supports up to 350W cTDP
GPU Options:
Up to 4x 400W DW GPUs
RAM:
64x DIMM slots, up to 16TB RAM DDR5-4800MT/s RDIMM ECC
LAN:
1x RJ45 Dedicated iDRAC Ethernet Port
Expansion Slots:
Up to 12x PCIe Gen5 Full-Height, Full-Length slots
M.2:
2x M.2 NVMe SSDs or USB via NVMe BOSS-N1 (HWRAID)
Storage:
Front Bays
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB
Up to 32 x 2.5-inch SAS/SATA (HDD/SSD) max 491.52 TB
| SKU Overview | ||
|---|---|---|
| R960 (210-BDZY) | Dual 5th/4th Gen Intel Xeon Scalable CPU, 24x 2.5" U.2 NVMe/SAS/SATA + 4x E3.S Hot-Swap drive bays, 8x PCIe Gen5, 2x 3200W redundant PSUs | |
Datasheet for Dell R960 (210-BDZY)
| Processor | |
|---|---|
| CPU | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology |
| Chipset | |
|---|---|
| - |
| GPU Accelerators | |
|---|---|
| Max GPU Count | Up to 4 x 400 W DW |
| System Memory | |
|---|---|
| Memory | 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | |
|---|---|
| Internal Controllers | PERC H965i, PERC H755, PERC H355, HBA355i, HBA465ii |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB |
| External HBA (non-RAID) | HBA355e, HBA465e |
| Software RAID | S160 |
| Storage | |
|---|---|
| Front Bays | Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 32 x 2.5-inch SAS/SATA (HDD/SSD) max 491.52 TB |
| Power Supplies | |
|---|---|
| 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 1100W LVDC –48 — –60 VDC, hot swap redundant |
| Cooling Options | |
|---|---|
| Air cooling Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
| Fans | |
|---|---|
| Standard (STD) fans Up to 6 sets (dual fan module) hot plug fans |
| Dimensions | |
|---|---|
| Height – 174.3 mm (17.43 cm) Width – 482 mm (48.2 cm) Depth – 883.195 mm (88.31 cm) with bezel 869.195 mm (86.91 cm) without bezel |
| Form Factor | |
|---|---|
| 4U rack server |
| Embedded Management | |
|---|---|
| • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Bezel | |
|---|---|
| Optional LCD bezel or security bezel |
| OpenManage Software | |
|---|---|
| • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
| Mobility | |
|---|---|
| OpenManage Mobile |
| OpenManage Integrations | |
|---|---|
| • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | |
|---|---|
| • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Embedded NIC | |
|---|---|
| 2 x 1GbE LOM card (optional) | |
| Network Options | |
|---|---|
| 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
| GPU Options | |
|---|---|
| Up to 4 x 400 W DW | |
| Ports | |
|---|---|
|
Front Ports |
|
| PCIe | |
|---|---|
| Up to twelve PCIe slots: Slot 1: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 2: 1 x16 Gen5 Full height, Half length Slot 3: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width) Slot 4: 1 x16 Gen5 Low profile, Half length Slot 5: 1 x16 Gen5 Low profile, Half length Slot 6: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width) Slot 7: 1 x16 Gen5 Full height, Half length Slot 8: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width) Slot 9: 1 x16 Gen5 Low profile, Half length Slot 10: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 11: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width) Slot 12: 1 x16 Gen5 Full height, Half length |
|
| Operating System and Hypervisors | |
|---|---|
| Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | R960 (210-BGPS) | |
| System Building | R960 (210-BGPS) can be configured individually | |
