Preview: Dell PowerEdge R770 210-BNWX 2U Rackmount Server

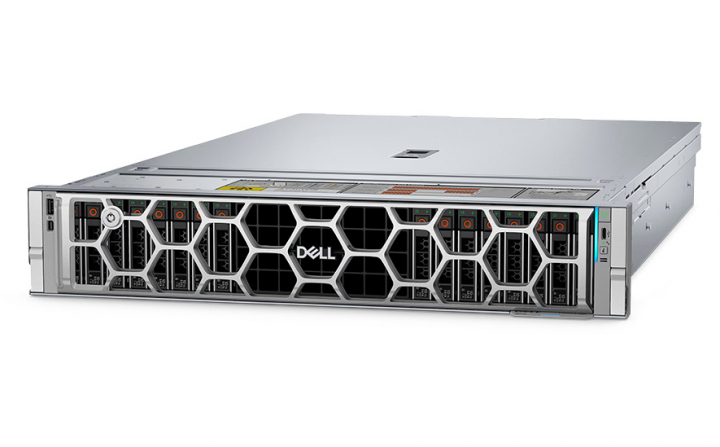

Dell PowerEdge R770 210-BNWX 2U Rackmount Server

long delivery time

Advantages:

Exceptional scalability
Open designs according to industry standards (DC-MHS)
Data Analytics
Software defined storage

Price on request

Do you need help?
Your contact person:

Gunnar Dietrich

Sales

+49 (0)4181 235770

request quotation

Manufacturer: Dell
Order number:
1254905
Manufacturer SKU:
210-BNWX

Configuration not found? Please use our server request form!

Dell PowerEdge R770 (210-BNWX): 2U server with maximum performance through optimized power... more

Close menu

210-BNWX Product Information

Dell PowerEdge R770 (210-BNWX): 2U server with maximum performance through optimized power consumption with dual-socket Intel Xeon 6 CPUs

CPU:

Dual Intel Xeon 6 Series Processors

Up to 144 E-Cores / 86 P-Cores per Processor, supports up to 350W cTDP

GPU Accelerators:

Up to 6x 75W FHHL or up to 2x 350W DWFL

RAM:

32x DIMM slots, up to 8TB RAM DDR5-6400MT/s RDIMM ECC

LAN:

1x Dedicated Ethernet Port for iDRAC management

4x OCP NIC 3.0 cards (optional)

Expansion Slots:

Up to 2x PCIe Gen5 x16 slots (FH)

Up to 8x PCIe Gen5 x8 and x16 slot

M.2:

2x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2x M.2 NVMe SSDs or USB

Storage:

Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB also comes with FIO configuration or

Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB also comes with FIO configuration or

Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 489.6 TB or

Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 122.88 TB or

Up to 8 x 2.5-inch Universal max 245.6 TB or

Up to 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB or

Up to 24 x 2.5 inch SAS/SATA (SSD) max 92.16 TB or

Up to 16 x 2.5 inch SAS/SATA (SSD) + 8 x 2.5-inch NVME) max 92.16 TB or

Up to 40 x EDSFF E3.S Gen5 NVMe (SSD) max 614.4 TB or

Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 61.2 TB on the rear

Close menu

SKU Overview
R770 (210-BNWX)	Dual Intel Xeon 6 CPU, 40x E3.S NVMe Hot-Swap SSD drive bays, 2 + 8x PCIe Gen5 (FH), 2x 3200W redundant PSUs

Datasheet for Dell R770 (210-BNWX)

Processor
CPU	Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor

Chipset
-

GPU Accelerators
Max GPU Count	Up to 6 x 75 W FHHL* or up to 2 x 350 W DWFL

System Memory
Memory	32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s Supports registered ECC DDR5 DIMMs only

Storage Controllers
Internal Controllers	Front PERC H965i, Front PERC H975i*, Front PERC H365i
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB

Storage
Front Bays	No backplane configuration Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB also comes with FIO configuration Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB also comes with FIO configuration Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 489.6 TB Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 122.88 TB Up to 8 x 2.5-inch Universal max 245.6 TB Up to 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB Up to 24 x 2.5 inch SAS/SATA (SSD) max 92.16 TB Up to 16 x 2.5 inch SAS/SATA (SSD) + 8 x 2.5-inch NVME) max 92.16 TB Up to 40 x EDSFF E3.S Gen5 NVMe (SSD) max 614.4 TB* Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 61.2 TB on the rear*

Storage

Front Bays

No backplane configuration
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB also comes with FIO configuration
Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB also comes with FIO configuration
Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 489.6 TB
Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 122.88 TB
Up to 8 x 2.5-inch Universal max 245.6 TB
Up to 16 x 2.5 inch SAS/SATA (SSD) max 61.44 TB
Up to 24 x 2.5 inch SAS/SATA (SSD) max 92.16 TB
Up to 16 x 2.5 inch SAS/SATA (SSD) + 8 x 2.5-inch NVME) max 92.16 TB
Up to 40 x EDSFF E3.S Gen5 NVMe (SSD) max 614.4 TB*
Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 61.2 TB on the rear*

Power Supplies
800 W Platinum 100—240 VAC or 240 VDC 1100 W Platinium 100—240 VAC or 240 VDC 1500 W Titanium 100—240 VAC or 240 VDC 1100 W Titanium 100—240 VAC or 240 VDC* 3200 W Titanium 200—240 VAC or 240 VDC 800 W Titanium 100—240 VAC or 240 VDC* 3200 W 277 VAC and 336 HVDC Titanium* 1400 W -48VDC 60mm* • 1500 W 277 VAC and 336 HVDC Titanium* 2400 W Titanium 100—240 VAC or 240 VDC* 1800 W HLAC Titanium 200—240 VAC or 240 VDC*

Power Supplies

800 W Platinum 100—240 VAC or 240 VDC
1100 W Platinium 100—240 VAC or 240 VDC
1500 W Titanium 100—240 VAC or 240 VDC
1100 W Titanium 100—240 VAC or 240 VDC*
3200 W Titanium 200—240 VAC or 240 VDC
800 W Titanium 100—240 VAC or 240 VDC*
3200 W 277 VAC and 336 HVDC Titanium*
1400 W -48VDC 60mm* • 1500 W 277 VAC and 336 HVDC Titanium*
2400 W Titanium 100—240 VAC or 240 VDC*
1800 W HLAC Titanium 200—240 VAC or 240 VDC*

Cooling Options
Air cooling and Direct Liquid Cooling Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans
High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans Up to 6 hot swappable fans

Dimensions
Height – 86.8 mm (8.68cm) Width – 482 mm (48.2cm) Weight – 28.53 kg (62.89 pound) Depth (for rear I/O configuration) 802.40 mm (31.59 cm) with bezel 801.51 mm (31.56 cm) without bezel Depth (for front I/O configuration) 814.52 mm (32.07 inches) without bezel Note: The front I/O configuration does not support the bezel.

Form Factor
2U rack server

Embedded Management
iDRAC iDRAC Direct iDRAC RESTful API with Redfish RACADM CLI iDRAC Service Module (iSM) NativeEdge Endpoint NativeEdge Orchestrator

Bezel
Optional metal bezel

Security
• OpenManage Enterprise (OME) • OME Power Manager • OME Services • OME Update Manager • OME APEX AIOps Observability • OME Integration for VMware vCenter (with VMware Aria Operations) • OME Integration for Microsoft System Center • OpenManage Integration for Windows Admin Center

Mobility
N/A

Tools
IPMI

OpenManage Integrations
RedHat Ansible Collections Terraform Providers

Change Management
Dell Repository Manager Dell System Update Enterprise Catalogs Server Update Utility (SUU)

Security
Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown System Lockdown (requires iDRAC10 Enterprise or Datacenter) Chassis Intrusion Detection TPM 2.0 FIPS, CC-TCG certified

Network options
4 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE* Slot 4 1 x 8 or 1 x 16 Gen5 OCP 3.0 Slot 10 1 x 8 or 1 x 16 OCP 3.0 Slot 34 1 x 16 Gen5 OCP 3.0 on front riser Slot 38 1 x 16 Gen 5 OCP 3.0 on front riser

BOSS
Slot 34 1 x 4 BOSS Slot 6 1 x 4 BOSS

GPU options
Up to 6 x 75 W FHHL* or up to 2 x 350 W DWFL

Ports
Front Ports: 1 x USB 2.0 Type C port 1 x USB 2.0 Type A port (optional) 1 x Mini-DisplayPort (optional) 1 x DB9 Serial (with front I/O configuration) 1 x Dedicated ethernet port for iDRAC management Rear Ports: 1 x Dedicated ethernet port for iDRAC management 1 x VGA 2 x USB 3.1 Type A ports Internal Ports: 1 x USB 3.1 Type A port

PCIe
Up to two PCIe slots ( x16 connectors) Slot 31 1 x 16 Gen5 Full Height - Half Length or Full Length on front Riser Slot 36 1 x 16 Gen5 Full Height - Half Length on front Riser Up to eight PCIe slots (x8 and x16 connectors) Slot 1 1 x 8 Gen5 Full Height - Half Length Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length Slot 3 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Low Profile Slot 4 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 8 or 1 x 16 OCP 3.0 Slot 5 2 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length Slot 7 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length Slot 8 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length Slot 9 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 16 Low Profile- Half Length

PCIe

Up to two PCIe slots ( x16 connectors)
Slot 31 1 x 16 Gen5 Full Height - Half Length or Full Length on front Riser
Slot 36 1 x 16 Gen5 Full Height - Half Length on front Riser
Up to eight PCIe slots (x8 and x16 connectors)
Slot 1 1 x 8 Gen5 Full Height - Half Length
Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
Slot 3 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Low Profile
Slot 4 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 8 or 1 x 16 OCP 3.0
Slot 5 2 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
Slot 7 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
Slot 8 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
Slot 9 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 16 Low Profile- Half Length

Operating System and Hypervisors
Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V (P-Core only) Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Order Information
Manufacturer SKU	R770 (210-BNWX)
System Building	R770 (210-BNWX) can be configured individually
