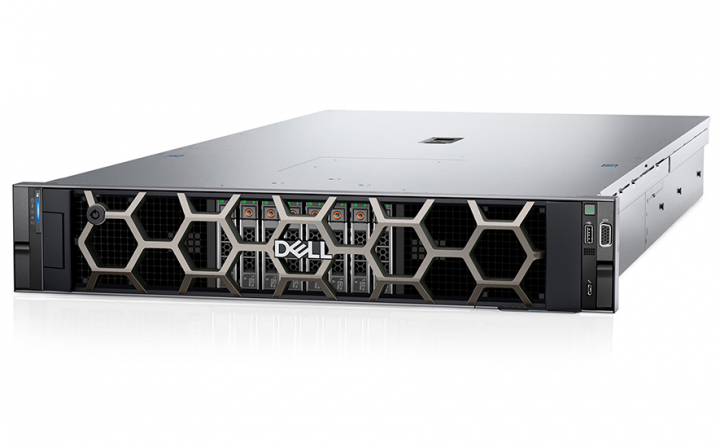

Dell R760xa 210-BGRR | Dual Intel Xeon 2U PowerEdge AI Server
long delivery time
Advantages:
- AI/ML/DL Training and Inferencing
- Digital Twins, render graphics
- Virtualization and VDI graphics
Price on request
- Manufacturer: Dell
-
Order number:
1254902
-
Manufacturer SKU:
210-BGRR
Configuration not found? Please use our server request form!
Dell PowerEdge R760xa (210-BGRR): Scalable GPU Infrastructure with 64-Cores and supports up to... more
210-BGRR Product Information
Dell PowerEdge R760xa (210-BGRR): Scalable GPU Infrastructure with 64-Cores and supports up to 12 SW/4 DW GPU cards in 2U Air-Cooled Design
CPU:
Dual 5th/4th Gen Intel Xeon Scalable Processors
Up to 64 cores per processor, supports up to 350W cTDP
GPU Options:
Up to 4x 400 W DW PCIe x16 GPU cards
Up to 12x 75 W SW PCIe x8 GPU cards
RAM:
32x DIMM slots, up to 8TB RAM DDR5-5600MT/s RDIMM ECC
LAN:
1x RJ45 iDRAC Ethernet Port
Expansion Slots:
Up to 12x PCIe Gen5 slots
M.2:
2x M.2 NVMe SSDs via NVMe BOSS-N1 (HWRAID1)
Storage:
6x E3.S Gen5 NVMe drive bays or
6x 2.5-inch NVMe drive bays or
8x 2.5-inch SAS/SATA/NVMe drive bays
| SKU Overview | ||
|---|---|---|
| R760xa (210-BGRR) | Dual 5th/4th Gen Intel Xeon Scalable CPU, 8x 2.5" U.2 NVMe/SAS/SATA Hot-Swap drive bays, 12x PCIe Gen5 (FH-SW), 2x 3200W redundant PSUs | |
Datasheet for Dell R760xa (210-BGRR)
| Processor | |
|---|---|
| CPU | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist Technology |
| Chipset | |
|---|---|
| Intel® C741 chipset |
| GPU Accelerators | |
|---|---|
| Max GPU Count | Up to 4 x 400 W DW PCIe x16 GPU cards Up to 12 x 75 W SW PCIe x8 GPU cards |
| System Memory | |
|---|---|
| Memory | 32 DDR5 DIMM slot, supports RDIMM 8 TB max Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | |
|---|---|
| Internal Controllers | PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB |
| External HBA (non-RAID) | HBA355e, HBA465e, H965e |
| Software RAID | S160 |
| Storage | |
|---|---|
| Front Bays | Up to 6 x E3.S Gen5 NVMe, max 46.08 TB Up to 6 x 2.5-inch NVMe, max 92.16 TB Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB |
| Power Supplies | |
|---|---|
| 3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant |
| Cooling Options | |
|---|---|
| Air cooling Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. |
| Fans | |
|---|---|
| Standard (STD) fan Up to six hot plug fans |
| Dimensions | |
|---|---|
| Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 946.73 mm (37.27 inches) - without bezel 932.89 mm (36.73 inches) - with bezel |
| Form Factor | |
|---|---|
| 2U rack server |
| Embedded Management | |
|---|---|
| • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Bezel | |
|---|---|
| Optional LCD bezel or security bezel |
| OpenManage Software | |
|---|---|
| • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
| Mobility | |
|---|---|
| OpenManage Mobile |
| OpenManage Integrations | |
|---|---|
| • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | |
|---|---|
| Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
| Embedded NIC | |
|---|---|
| 2 x 1GbE LOM card (optional) | |
| Network Options | |
|---|---|
| 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
|
| GPU Options | |
|---|---|
| Up to 4 x 400 W DW PCIe x16 GPU cards Up to 12 x 75 W SW PCIe x8 GPU cards |
|
| Ports | |
|---|---|
| Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
|
| PCIe | |
|---|---|
| Up to twelve PCIe slots (x16 connector) 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW |
|
| Operating System and Hypervisors | |
|---|---|
| Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | R760xa (210-BGRR) | |
| System Building | R760xa (210-BGRR) can be configured individually | |
