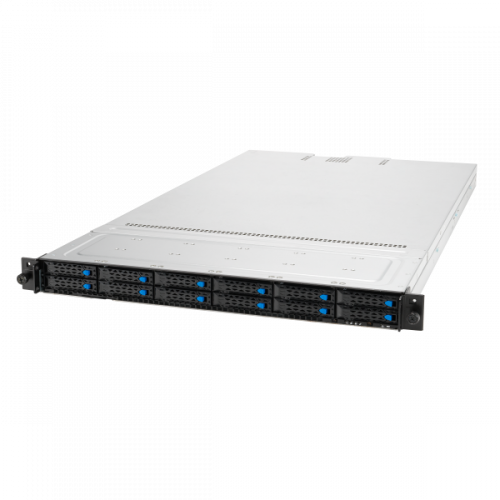

Asus RS500A-E11-RS12U | Single AMD EPYC 1U All-Flash NVMe Server
Advantages:
- Data Center
- Storage
- Networking

- Manufacturer: Asus
-
Order number:
1254736
-
Manufacturer SKU:
90SF01R1-M00DJ0
Configuration not found? Please use our server request form!
90SF01R1-M00DJ0 Product Information
Asus RS500A-E11-RS12U (90SF01R1-M00DJ0): Power Efficient Performance with 12 High-Speed NVMe and EPYC Compute in Compact 1U
CPU:
Single Socket SP3 (LGA 4094)
AMD EPYC™ 7002 Series Processors
AMD EPYC™ 7003 Series Processors
3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
64 cores, 128 threads and a maximum TDP of 280W
RAM:
16x DIMM slots, up to 4TB RAM DDR4-3200MHz RDIMM / LRDIMM / LRDIMM 3DS
8-channel Memory Architecture, 2DPC
LAN:
2x 1GbE RJ45 LAN ports
1x 10/100/1000 Mbps dedicated BMC management port
Expansion Slots:
1x PCIe 4.0 x16 slot full-height, half-length
1x PCIe 4.0 x16 slot low-profile, half-length
1x PCIe x16 slot (Gen4 x8,low-profile, half-length)
1x OCP3.0 slot with PCIe 4.0 x16
M.2:
2x M.2 slots, PCIe 4.0 x4/SATA, Form factor 2280/22110, M-Key
Storage:
12x 2.5" U.2 NVMe/SATA/SAS Hot-Swap drive bays
SKU Overview | ||
---|---|---|
RS500A-E11-RS12U | Single AMD EPYC 7002/7003 Series CPU, 12x 2.5" hot-swap drive bays, 3x PCIe (1x FHHL, 2x LPHL), 1x OCP 3.0, 2x 1GbE LAN, 2x 800W redundant PSUs |
Datasheet for Asus RS500A-E11-RS12U (90SF01R1-M00DJ0)
Dimensions (WxHxD, mm) | 1U 842.5mm x 449mm x 44mm |
|
Processor / System Bus | 1 x Socket SP3 (LGA 4094) AMD EPYC™ 7002 Series AMD EPYC™ 7003 Series 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology |
|
Memory | Total Slots : 16 (8-channel, 2DPC) Capacity : Max. 4,096GB Memory Type : DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS Memory Size : 256GB, 128GB, 64GB, 32GB, 16GB |
|
Expansion Slots | 1 x PCIe x16 slot (Gen4 x16 link,FH,HL) 1 x PCIe x16 slot (Gen4 x16 link,LP,HL) 1 x PCIe x16 slot (Gen4 x8 link,LP,HL) 1 x OCP3.0 slot (Gen4 x16 link) |
|
Storage | Storage Controller : CPU Integrated Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G HBA card ASUS PIKE II 3108-8i 8-port SAS 12G RAID card |
|
Drive Bays | Front: 12 x 2.5" Hot-swap Storage Bays (Backplane Supports 12 x SATA/SAS/NVMe Devices) Internal: (optional) 4 x 2.5" Easy-swap Storage Bays (Backplane Supports 4 x SATA/NVMe Devices) 2 x M.2 connectors |
|
Networking | 2 x 1GbE LAN ports (RJ45, Intel I350-AM2) | |
Rear I/O Ports | 2 x USB 3.2 Gen1 port 1 x VGA port 1 x COM port 2 x 1GbE LAN ports (RJ45) 1 x Management port (RJ45) |
|
Switch/LED | Front : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED Rear : 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 2 x LAN LED |
|
OS Support | Windows Server 2022 Windows Server 2019 Ubuntu 20.04 SUSE Enterprise 15 SP2 RHEL 8.X RHEL 7.X ESXi 8.0 ESXi 7.0 U3 |
|
Management Solution | ASUS Control Center Enterprise (in-band) ASMB10-iKVM (out-of-band/BMC AST2600) |
|
Regulatory Compliance | BSMI, CB, CE, RCM, FCC(Class A) | |
Weight | Net Weight: 17 Kg. Gross Weight: 22 Kg. |
|
Power Supply | 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac, 10A/5A, 50/60Hz |
|
Environment | Operating temperature: 10°C – 35°C Non operating temperature: -40°C – 70°C Non operating humidity: 20% – 90% (Non condensing) |
|
Order Information | ||
Manufacturer SKU | RS500A-E11-RS12U (90SF01R1-M00DJ0) | |
System Building | RS500A-E11-RS12U (90SF01R1-M00DJ0) can be configured individually |
