Supermicro AS-4124GS-TNR | Dual AMD EPYC 4U GPU Server
long delivery time
Advantages:
- AI / Deep Learning
- High Performance Computing (HPC)
- Cloud Gaming
- Molecular Dynamics Simulation
special highlight
10x 4U GPU Server
Supports 10 of the new NVIDIA A100™ Tensor Core GPUs
- Manufacturer: Supermicro
-
Order number:
1249391
-
Manufacturer SKU:
AS-4124GS-TNR
Configuration not found? Please use our server request form!

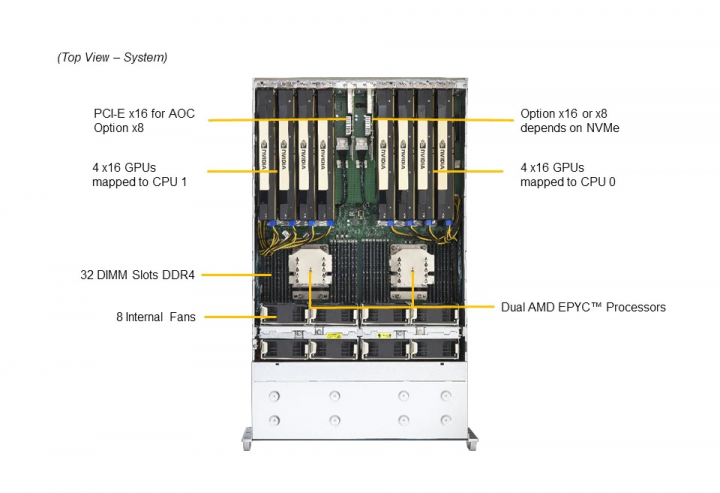

Supermicro AS-4124GS-TNR: SuperServer with 4U Dual Processor and dual-root GPU system
... more
AS-4124GS-TNR Product Information
Supermicro AS-4124GS-TNR: SuperServer with 4U Dual Processor and dual-root GPU system
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro H12DSG-O-CPU
CPU:
Dual AMD EPYC™ 7003/7002 Series Processors, Socket SP3
Up to 128 Cores (64 per CPU), supports up to 280W CPU TDP
RAM:
32x DIMM slots
Up to 8TB RAM DDR4-3200MHz
LAN:
2x RJ45 GbE LAN ports (rear)
1x RJ45 Dedicated IPMI LAN port
Expansion slots:
9x PCI-E 4.0 x16 (FHFL) slots
or 10x PCI-E 4.0 x16 (FHFL) slots without NVMe devices
Storage:
24x 2.5" SAS/SATA drive bays
with included hardware:
2x 2.5" SATA in RAID 1 via onboard Marvell 9230
4x 2.5" NVMe supported natively
RAID controller option available for 24 HDDs
Datasheet for Supermicro A+ Server 4124GS-TNR
| Processor/Cache | |
|---|---|
| CPU | Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)* Socket SP3 Support CPU TDP up to 280W** |
| Cores | Up to 128 Cores (64 per CPU) |
| Note | *Supports 2 CPUs only – single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. |
| GPU | |
|---|---|
| Supported GPUs | 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct Supports both active and passive cooled GPUs |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional) |
| System Memory | |
|---|---|
| Memory Capacity | 32 DIMM slots* Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Note | * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip (SoC) |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Provided via riser card |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output | |
|---|---|
| SATA | 24 SATA/SAS with a controller |
| LAN | 2 RJ45 GbE LAN ports (rear) 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA Connector |
| COM Port | 1 COM port (header) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
|---|---|
| Software | IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) |
| Model | CSE-418G2TS-R4016BP |
| Dimensions | |
|---|---|
| Height | 7.0" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) |
| Available Colors | Black |
| Drive Bays / Storage | |
|---|---|
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays 2x 2.5" SATA supported natively* 4x 2.5" NVMe supported natively RAID controller option available for 24 HDDs |
| Note | * 2x drives in RAID 1 only via onboard Marvell 9230 |
| Expansion Slots | |
|---|---|
| PCI-Express | 9 PCI-E 4.0 x16 (FHFL) slots or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices |
| System Cooling | |
|---|---|
| Fans | 8x 11.5K RPM heavy duty fans |
| Power Supply | |
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 220 – 240Vac (UL only) |
| Dimension (W x H x L) |
73.5 x 40 x 203 mm |
| Input | 100-127Vac / 12-9A / 50-60Hz 200-220Vac / 10-9.8A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 220-240Vac / 11-10A / 50-60Hz (UL only) |
| +12V | Max: 83A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166A / Min: 0A (230-240Vac) Max: 166A / Min: 0A (220-240Vac) (UL only) |
| 12Vsb | Max: 3.5A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | ||
|---|---|---|
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-4124GS-TNR | |
| System Building | AS-4124GS-TNR configured by Supermicro as Complete System | |
