Supermicro AS-4124GO-NART | Dual AMD EPYC 8x GPU Server
long delivery time
Advantages:
- High performance Computing (HPC)
- AI / Deep Learning
special highlight
A+ Rack Server

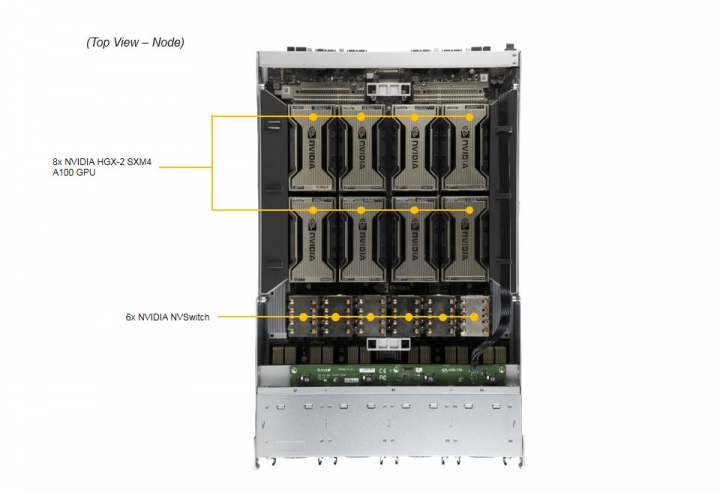

Up to 8x NVIDIA A100 Gen4, 6x NVLink Switch
- Manufacturer: Supermicro
-
Order number:
1249941
-
Manufacturer SKU:
AS-4124GO-NART
Configuration not found? Please use our server request form!
Supermicro AS-4124GO-NART: A+ AMD EPYC Server for 8 GPUs with Highest GPU communication... more
AS-4124GO-NART Product Information
Supermicro AS-4124GO-NART: A+ AMD EPYC Server for 8 GPUs with Highest GPU communication using NVIDIA® NVLINK™ and NVSwitch™, NICs for GPUDirect RDMA
Please note: This barebone is not available individually, but only as a complete system with a minimum configuration. However, the displayed price refers to the barebone without a minimum configuration. Please contact us for an offer of a complete system in your desired configuration.
Mainboard:
Supermicro H12DGO-6
CPU:
Dual AMD EPYC™ 7003/7002 Series Processors, Socket SP3
Up to 128 Cores, supports up to 280W CPU TDP
RAM:
32x DIMM slots, 8TB RAM ECC DDR4 3200MHz
LAN:
1 RJ45 Dedicated IPMI LAN port
Provided by AIOM
Expansion Slots:
8x PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPU's 1:1 connection to 8 NICs
1x PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs
Storage:
6x hot-swap U.2 NVMe 2.5” drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA)
(up to 10x hot-swap U.2 NVMe 2.5” available)
Datasheet for Supermicro A+ Server 4124GO-NART
| Processor/Cache | |
|---|---|
| CPU | Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) Socket SP3 Supports CPU TDP up to 280W* |
| Cores | Up to 128 Cores (64 per CPU) |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| GPU | |
|---|---|
| Supported GPUs | SXM Multi-GPU Board 8-GPU HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e) |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect |
| System Memory | |
|---|---|
| Memory Capacity | 32 DIMM slots Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM |
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices | |
|---|---|
| Chipset | System on Chip (SoC) |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Provided via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2600 BMC |
| Input / Output | |
|---|---|
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | Provided by AIOM 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (front) |
| Video | 1 VGA Connector (front) |
| COM Port | 1 COM port (header) |
| System BIOS | |
|---|---|
| BIOS Type | AMI 256Mb SPI Flash ROM |
| Management | |
|---|---|
| Software | IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) |
| Model | CSE-438G |
| Dimensions | |
|---|---|
| Height | 6.9" (174mm) |
| Width | 17.6" (446mm) |
| Depth | 35.4" (900mm) |
| Package | 29.5" (750mm) H x 27.4" (695mm) W x 44.9" (1140mm) D |
| Weight | Net Weight: 166.0 lbs (75.3 kg) Gross Weight: 225.0 lbs (102.1 kg) |
| Available Colors | Black |
| Drive Bays / Storage | |
|---|---|
| Hot-swap | 6 hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA) (up to 10 hot-swap U.2 NVMe 2.5" available) |
| Expansion Slots | |
|---|---|
| PCI-Express | 8 PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPU's 1:1 connection to 8 NICs 1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs |
| System Cooling | |
|---|---|
| Fans | 4 x Hot-swap 11.5K RPM heavy duty fans |
| Power Supply | |
|---|---|
| 2200W Redundant Platinum Level Power Supplies | |
| Total Output Power | 1000W with Input 100 - 127Vac 2200W with Input 220 - 240Vac (for UL/cUL only) 2090W with Input 230 - 240Vdc (for CQC only) |
| Dimension (W x H x L) |
106.5 x 82.4 x 203.5 mm |
| Input | 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz 2200W: 220-240 Vac / 11.8-9.6 A / 50-60 Hz (for UL/cUL only) 2090W: 230-240 Vdc / 10-9.8 A / 50-60 Hz (for CQC only) |
| +12V | Max: 41.67A / Min: 0A (500W) |
| +54V | Max: 18.5A / Min: 0A (1000W) Max: 33.33A / Min: 0A (1800W) Max: 36.6A / Min: 0A (1980W) Max: 38.7A / Min: 0A (2090W) Max: 40.74A / Min: 0A (2200W) |
| 12Vsb | Max: 3A / Min: 0A |
| Output Type | Gold Finger (connector on M/P) |
| Certification | Platinum Certified |
| Operating Environment | ||
|---|---|---|
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
| Order Information | ||
|---|---|---|
| Manufacturer SKU | AS-4124GO-NART | |
| System Building | AS-4124GO-NART configured by Supermicro as Complete System | |
