SYS-2029U-TN24R4T | Supermicro Dual Xeon 2U Storage Rack Server
Advantages:
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High-end Enterprise Server
special highlight
All-NVMe Storage Server
24x NVMe U.2 + 4x 10G LAN ports
- Manufacturer: Supermicro
-
Order number:
SYS-2029U-TN24R4T
-
Manufacturer SKU:
SYS-2029U-TN24R4T
Configuration not found? Please use our server request form!
Supermicro SYS-2029U-TN24R4T: 2U Ultra Server for virtualization and storage... more
SYS-2029U-TN24R4T Product Information

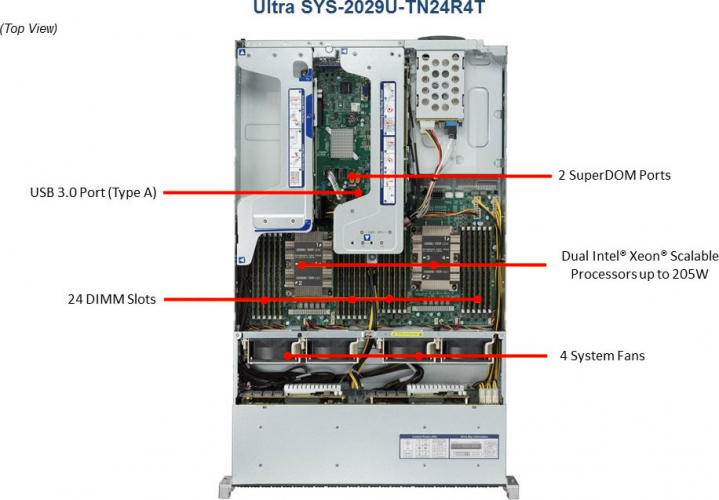

Supermicro SYS-2029U-TN24R4T: 2U Ultra Server for virtualization and storage intensive applications
Mainboard:
Supermicro X11DPU
CPU:
Dual Socket P (LGA 3647), 2nd Gen Intel Xeon Scalable Processors
Up to 28 Cores, support 205W TDP
RAM:
24x DIMM slots, up to 6TB RAM DDR4-2933MHz
Supports Intel Optane DCPMM
LAN:
4x 10GBase-T LAN ports
1x RJ45 dedicated IPMI LAN port
Expansion Slots:
2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slot
M.2:
1x M.2 PCI-E 3.0 x4, Form factor 2240/2260/2280/22110, M-Key via optional parts
2x M.2 PCI-E 3.0 x4, Form factor 2260/2280/22110, M-Key via optional Add-on card AOC-SLG3-2M2
Storage:
24x 2.5" hot-swap NVMe drive bays
2x 2.5" rear hot-swap SATA drive bays
Datasheet for Supermicro SYS-2029U-TN24R4T
| Processor/Cache | |
|---|---|
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| System Memory | |
|---|---|
| Memory Capacity | 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM |
| Note | † 2933MHz in zwei DIMMs pro Kanal können nur mit Speicher †† Cascade Lake only |
| On-Board Devices | |
|---|---|
| Chipset | Intel® C621 chipset |
| Storage | SATA3 (6Gbps); RAID 0, 1, 5, 10 per node |
| Network Connectivity | 4x 10GBase-T ports via Intel® X550 Ethernet Controller 1x Realtek RTL8211E PHY (dedicated IPMI) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output | |
|---|---|
| NVMe | 24 NVMe ports |
| LAN | 4 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 3 USB 3.0 ports (2 rear, 1 Type A) |
| Video | 2 VGA ports (1 rear, 1 onboard) |
| Serial Port / Header | 1 Serial port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS | |
|---|---|
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
|---|---|
| Software | Intel® Node Manager Redfish API IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring | |
|---|---|
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator |
| Fan | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-219UBTS-R1K62P-TN24 |
| Dimensions and Weight | |
|---|---|
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 27.76" (705.3mm) |
| Weight | Net Weight: 39 lbs (17.7 kg) Gross Weight: 63 lbs (28.6 kg) |
| Available Colors | Black |
| Front Panel | |
|---|---|
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED |
| Expansion Slots | |
|---|---|
| PCI-Express | 2 PCI-E 3.0 x16 (FH, 10.5" L) 1 PCI-E 3.0 x8 (LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers) |
| Drive Bays / Storage | |
|---|---|
| Hot-swap | 24 hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC) 2 rear hot-swap 2.5" SATA drive bays |
| M.2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| System Cooling | |
|---|---|
| Fans | 4 Heavy duty 8cm PWM fans |
| Power Supply | |
|---|---|
| 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| Input | 100-127Vac / 13 - 9A / 50-60Hz 200-240Vac / 10 - 8A / 50-60Hz |
| +12V | Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
|---|---|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Order Information | ||
|---|---|---|
| Manufacturer SKU | SYS-2029U-TN24R4T | |
| System Building | SYS-2029U-TN24R4T configured by Supermicro as Complete System | |
