R152-Z30 | Gigabyte 1HE Barebone R152-Z30 6NR152Z30MR-00

Vorteile:

Virtualisierung
Datenbanken
Cloud Computing

besonderes Highlight

PCIe 4.0 ready

Listenpreis: 1.959,00 € *

zzgl. MwSt. zzgl. Versandkosten

Ihre Konfiguration

Energiebedarf: (TDP):

Brauchen Sie Hilfe?
Ihr Ansprechpartner:

Gunnar Dietrich

Vertrieb

+49 (0)4181 235770

Angebot anfordern (nach Login)

Hersteller:Gigabyte
Artikel-Nr.:1248605

Wunschkonfiguration nicht gefunden? Nutzen Sie unsere Serveranfrage!

mehr

Menü schließen

Gigabyte R152-Z30 Brandneue PCIe 4.0 Schnittstellen mit AMD EPYC Prozessoren ... mehr

Menü schließen

6NR152Z30MR-00 Produktinformationen

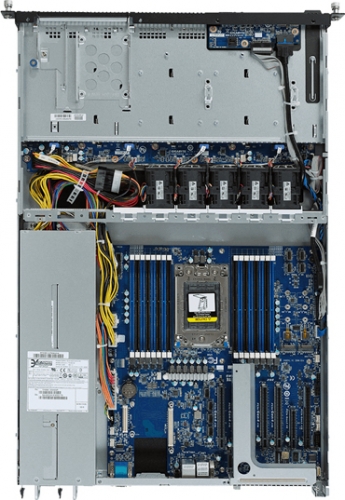

Gigabyte R152-Z30

Brandneue PCIe 4.0 Schnittstellen mit AMD EPYC Prozessoren

Mainboard:

MZ32-AR0

CPU:

Single Sockel SP3, AMD EPYC 7002

Bis zu 64 Kerne, 225W TDP

RAM:

16 DIMM Slots, bis zu 2TB DDR4-3200MHz ECC

Octa-Channel

LAN:

2 RJ45 GbE LAN Ports

1 Management LAN Port

Erweiterungsmöglichkeiten:

Riser Card CRS101D

1 OCP 2.0 Mezzanine Slot mit PCI-E 3.0 x16

2 M.2 Slots, mit PCI-E 3.0 x4, M-Key (2242/2260/2280/)

Storage:

8 Hot-swap 3.5“ SATA Einschübe

Menü schließen

Datenblatt für Gigabyte R152-Z30

Dimensions (WxHxD, mm)	1U 438 x 43.5 x 710
Motherboard	MZ32-AR0
CPU	AMD EPYC™ 7002 series processor family Single processor, 7nm technology Up to 64-core, 128 threads per processor TDP up to 225W, cTDP up to 240W Conditional support 280W Compatible with AMD EPYC™ 7001 series processor family
Chipset	System on Chip
Memory	16 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200/ 2933 MHz - Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN	2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN
Video	Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface [email protected] 32bpp
Audio	-
Storage	4 x 3.5" SATA hot-swappable HDD/SSD bays 2.5" HDD/SSD supported SAS card is required for SAS devices support
SAS	-
RAID	-
Peripheral Drives	1 x Slim type ODD as an option
Expansion Slots	Riser Card CRS101D: - 1 x PCIe x16 slot (Gen4 x16), Full height half-length 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4) 2 x M.2 slots: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280 cards
Internal I/O	2 x M.2 slots 1 x USB 3.0 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer
Front I/O	2 x USB 3.0 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED
Rear I/O	3 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 1 x MLAN 1 x ID button with LED
Backplane I/O	Backplane P/N: 9CBP1042NR-00 Speed and bandwidth: SAS 12Gb/s, SATA 6Gb/s
TPM	1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010
Power Supply	2 x 650W redundant PSUs 80 PLUS Platinum AC input: - 100-240Vac/ 10-5A, 50-60Hz DC intput: - 190-310V, 5-3A DC output: 650W +12V/52.9A +5Vsb/4.0A
System Management	Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Supported	Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later Citrix Hypervisor 8.1.0
Weight	Net Weight: 11.78 kg Gross Weight: 20.04 kg
System Fans	5 x 40x40x56mm (25'000rpm)
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) Ambient temperature limited to 30°C if using 280W CPU
Packaging Dimensions	985 x 588 x 250 mm
Packaging Content	1 x R152-Z30 1 x CPU heatsink 1 x Rail kit
Part Numbers	Barebone package: 6NR152Z30MR-00 Spare parts: - Motherboard: 9MZ32AR0NR-00 - Rail kit: 25HB2-3A0202-K0R - CPU heatsink: 25ST1-44320G-A0R - Back plane board: 9CBP1042NR-00 - Front panel board: 9CFP1010NR-00 - Fan module: 25ST2-44562P-D0R - Power supply: 25EP0-206504-F3S - Fan duct for 280W CPU: 25HA8-R15200-S5R ( optional)
