SYS-120TP-DC1TR | Supermicro TwinPro Dual Xeon 1U 2 Node Server

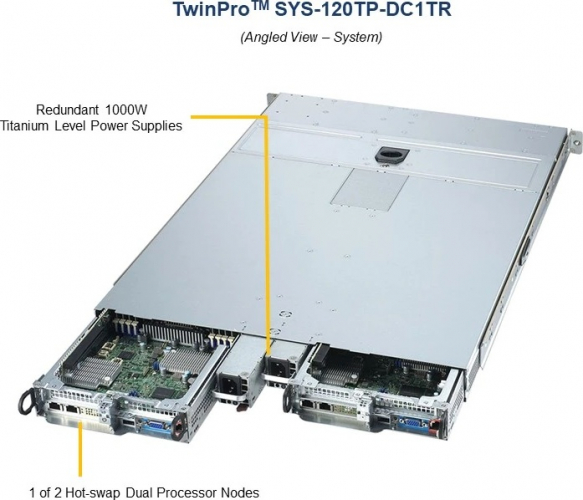

Supermicro SYS-120TP-DC1TR 1 of 2 Hot-swap Dual
Supermicro SYS-120TP-DC1TR Storage Adapter Card
Supermicro SYS-120TP-DC1TR 4x 2 5 Hot swap SAS
Supermicro SYS-120TP-DC1TR Redundant 1000W

Advantages:

  • High Performance Computing
  • Hyper-Converged Infrastructure
  • Big Data / Big Science
  • Oil immersion, Liquid Cooling

special highlight

1U 2 Node Rack Server

Coming soon
Do you need help?
Your contact person:
Christoph Handl
Sales
Christoph Handl
  • Supermicro
  • 1250047

  • SYS-120TP-DC1TR

Configuration not found? Please use our server request form!

Supermicro SYS-120TP-DC1TR: SuperServer TwinPro 1U High performance 2-Node Server with up to... more

SYS-120TP-DC1TR Product Information

Supermicro SYS-120TP-DC1TR: SuperServer TwinPro 1U High performance 2-Node Server with up to 4TB of Memory



Motherboard:

Supermicro X12DPT-PT6



CPU:

Dual Socket P+ (LGA-4189)

3rd Generation Intel® Xeon® Scalable processors

Up to 32 Cores/64 Threads, support CPU TDP 185W



RAM:

16x DIMM slots

Up to 4TB RAM DDR4-3200MHz



LAN:

2x 10GbE BaseT with Intel X710-AT2

1x RJ45 Dedicated IPMI LAN port



Expansion Slots:

2x PCI-E 4.0 x16 (LP) slots

1x PCI-E 4.0 x8 slot



M.2:

2x NVMe M.2



Storage:

4x 2.5” hot-swap SATA/SAS drive bays

Datasheet for Supermicro SYS-120TP-DC1TR

Processor/Cache (per Node)
CPU Dual Socket P+ (LGA-4189)
3rd Generation Intel® Xeon® Scalable processors
Support CPU TDP 185W *
Cores Up to 32C/64T; Up to 48MB Cache
Notes *Supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors
System Memory (per Node)
Memory Memory Capacity: 16 DIMM slots
UP to 4TB: 16x 256 GB DRAM
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM
Memory Type 1.2 V
Error Detection ECC
On-Board Devices (per Node)
Chipset Intel® C621A
Network Connectivity 2x 10GbE BaseT with Intel® X710-AT2
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (2 rear)
Video 1 VGA port
DOM 2 SuperDOM (Disk on Module) port
Others M.2 2 NVME M.2 (up to 22x80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only
System BIOS
BIOS Type AMI 32MB SPI Flash EEPROM
Management
Software Supermicro Out of Band (OOB) Software License Key (Included per Node)
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations ACPI/APM Power Management
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU 5 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-809H-R1K05P3
Dimensions and Weight
Height 1.7" (43mm)
Width 17.25" (438mm)
Depth 28.25" (718mm)
Package 8" (H) x 29.6" (W) x 38.4" (D)
Weight Net Weight: 33.5 lbs (15.2 kg)
Gross Weight: 48.1 lbs (21.9 kg)
Available Colours Black front & silver body
Front Panel
Buttons Power On/Off button
UID button
LEDs Network activity LED
Power status LED
System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16 LP
Slot 2: PCI-E 4.0 x16 LP
Internal Slot: M.2
Drive Bays / Storage (per Node)
Hot-swap 4x 2.5" hot-swap SATA/SAS drive bays
System Cooling
Fans 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud 2 Air Shrouds
Power Supply
1U 1000W Redundant, Titanium, 38(W) X 40(H) X 360(L) mm
Dimension (W x H x L) 38 x 40 x 360 mm
AC Input 800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
+54V Max: 4A / Min: 0A
Output Type Gold Finger Connector
Certification Titanium Level
Operating Environment
Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Order Information
Manufacturer SKU SYS-120TP-DC1TR
System Building SYS-120TP-DC1TR can be configured individually
