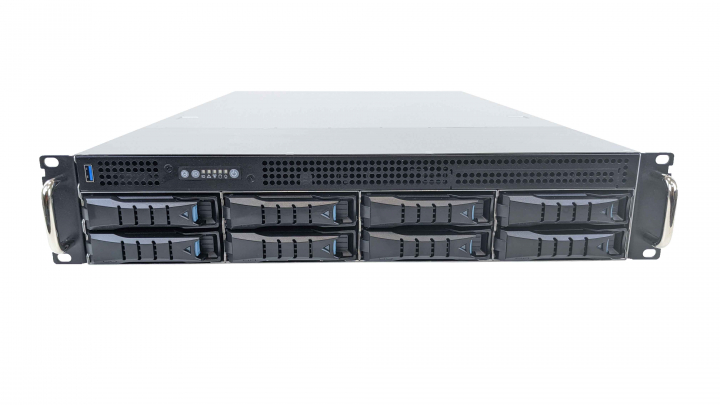

VS-SXS35M-2LACV3 | Happyware Single Xeon 2U Rackmount Server

Happyware VS-SXS35M-2LACV3 8x DIMMs 8x bays
very few qty in stock

Advantages:

  • All-in-One Server
  • Virtualization
  • Cloud Computing
  • Enterprise Server
  • Database processing and storage
Price: €1,454.00 *

Prices plus VAT plus shipping costs

Your configuration
    Energy: (TDP):
    Do you need help?
    Your contact person:
    Gunnar Dietrich
    Sales
    Gunnar Dietrich
    • Happyware
    • VS-SXS35M-2LACV3

    • VS-SXS35M-2LACV3

    Configuration not found? Please use our server request form!

    VS-SXS35M-2LACV3: Happyware 2U Storage Server  Solution suitable for broad range of... more

    VS-SXS35M-2LACV3 Product Information

    VS-SXS35M-2LACV3: Happyware 2U Storage Server Solution suitable for broad range of application with 8x 3.5 hot-swap tool-less hard drive carriers and equipped with the latest Intel Xeon 3rd Gen Scalable Processor



    CPU:

    Single Socket P+, 3rd Gen Intel Xeon Scalable Processor

    supports up to 270W TDP



    RAM:

    8x DIMM slots, up to 2TB RAM DDR4-3200MHz

    supports Intel Optane Persistent Memory



    LAN:

    2x 1GbE RJ45 LAN ports — for SKUs VS-SXS35M-2LACV3 and VS-SXS35M-2LACV3-R

    4x 1GbE RJ45 LAN ports — for SKUs VS-SXS35M-2LACV3-LN4 and VS-SXS35M-2LACV3-LN4-R

    2x 10GbE RJ45 LAN ports — for SKUs VS-SXS35M-2LACV3-T and VS-SXS35M-2LACV3-T-R



    Expansion Slots:

    7x PCIe low-profile slots



    M.2:

    1x M.2 slot, SATA/PCIe 3.0 x4, Form factor 2280/22110, M-Key



    Storage:

    8x 3.5" hot-swap tool-less SAS/SATA drive bays

    SKU Overview
    VS-SXS35M-2LACV3 Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap drive bays, 7x PCIe (LP), 2x 1GbE LAN, 1x 550W Single PSU
    VS-SXS35M-2LACV3-R Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap drive bays, 7x PCIe (LP), 2x 1GbE LAN, 2x 550W redundant PSU
    VS-SXS35M-2LACV3-LN4 Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap Laufwerkseinschübe, 7x PCIe (LP), 4x 1GbE LAN, 1x 550W Single PSU
    VS-SXS35M-2LACV3-LN4-R Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap drive bays, 7x PCIe (LP), 4x 1GbE LAN, 2x 550W redundant PSU
    VS-SXS35M-2LACV3-T Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap drive bays, 7x PCIe (LP), 2x 10GbE LAN, 1x 550W Single PSU
    VS-SXS35M-2LACV3-T-R Single Intel Xeon Scalable 3rd Gen CPU, 8x 3.5" hot-swap drive bays, 7x PCIe (LP), 2x 10GbE LAN, 2x 550W redundant PSU

    Datasheet for Happyware VS-SXS35M-2LACV3

    Processor
    CPU Single Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors
    CPU TDP supports Up to 270W TDP
    Cores Up to 40 cores
    System Memory
    Memory Capacity 8 DIMM slots
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series
    Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
    Memory Type 3200/2933/2666MHz ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
    Memory Voltage 1.2V
    Error Detection Corrects single-bit errors
    On-Board Devices
    Chipset Intel® C621A
    SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI ASPEED AST2600 BMC
    Graphics ASPEED AST2600 BMC
    Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller for VS-SXS35M-2LACV3 and VS-SXS35M-2LACV3-R model

    Quad LAN Gigabit Ethernet Controller — for VS-SXS35M-2LACV3-LN4 and VS-SXS35M-2LACV3-LN4-R model

    Dual LAN 10Gigabit Ethernet Controller — for VS-SXS35M-2LACV3-T and VS-SXS35M-2LACV3-T-R model
    Input / Output
    SATA 10 SATA3 (6Gbps) ports
    LAN 2 RJ45 Gigabit Ethernet LAN ports — for VS-SXS35M-2LACV3 and VS-SXS35M-2LACV3-R model

    4 RJ45 Gigabit Ethernet LAN ports — for VS-SXS35M-2LACV3-LN4 and VS-SXS35M-2LACV3-LN4-R model

    2 RJ45 10Gigabit Ethernet LAN ports — for VS-SXS35M-2LACV3-T and VS-SXS35M-2LACV3-T-R model
    USB 6 USB 2.0 port(s) (4 via header; 2 rear)
    5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video 1 VGA port
    Serial Port 1 COM port (1 header)
    DOM 2 SATA DOM (Disk on Module) power connector support
    TPM 1 TPM Header
    System BIOS
    BIOS Type AMI UEFI
    BIOS Features ACPI 6.2
    SMBIOS 3.0 or later
    UEFI 2.7
    Management
    Software SuperDoctor® 5
    SUM
    KVM with dedicated LAN
    SPM
    Intel® Node Manager
    SSM
    IPMI 2.0
    Watchdog
    Power Configurations Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
    LED UID/Remote UID
    Suspend static indicator LED
    CPU / System Overheat LED
    Temperature CPU thermal trip support
    PECI
    Fan 7x 4-pin fan headers (up to 7 fans)
    System level control
    PWM fan speed control
    Fan speed control
    Overheat LED indication
    Other Features WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
    Chassis
    Form Factor 2U Rackmount
    Dimensions and Weight
    Height 8.89 cm (88 mm)
    Width 43.18 cm (430 mm)
    Depth 55.88 cm (560 mm)
    Gross Weight 51.8 lbs (23.5 kgs)
    Packaging (W x H x L) 64.51 cm (645 mm) x 22.35 cm (224 mm) x 83.56 cm (835 mm)
    Available Color Black
    Front Panel
    Buttons System power on/off
    System reset
    1 x USB 3.0 port
    UID S/W
    LEDs Power
    LAN
    Drive
    Alert
    UID
    Expansion Slots
    PCI-Express — 7x PCI-E low-profile slots:

    1 PCI-E 4.0 x16,
    1 PCI-E 4.0 x8 (in x16 slot),
    2 PCI-E 4.0 x8,
    3 PCI-E 3.0 x8
    Drive Bays / Storage
    Hot-swap 8x 3.5" hot-swap SAS/SATA drive bays
    Internal 2x 2.5"
    2x 2.5" — optional
    M.2

    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    Form Factor: 2280/22110
    Key: M-Key

    Peripheral Drives
    1x Slim DVD-ROM drive bay
    Backplane
    2 x 4-port SATA/SAS backplane with SFF-8643 connector
    System Cooling
    Fans 3x PWM cooling fans
    Power Supply
    2U 550W Single Power Supply — for SKUs VS-SXS35M-2LACV3, VS-SXS35M-2LACV3-LN4 and VS-SXS35M-2LACV3-T

    2x 550W redundant PSU — for SKUs VS-SXS35M-2LACV3-R, VS-SXS35M-2LACV3-LN4-R and VS-SXS35M-2LACV3-T-R
    Certification 80 PLUS Platinum Level
    Order Information
    Manufacturer SKU VS-SXS35M-2LACV3
    System Building VS-SXS35M-2LACV3 configured by Happyware as Complete System
